Deploy diagram

Desktop Modeler can directly deploy diagrams and start process instances in Camunda 8 Self-Managed. Follow the steps below to deploy a diagram:

1. Click the rocket-shaped deployment icon:



2. Click Camunda 8 Self-Managed:

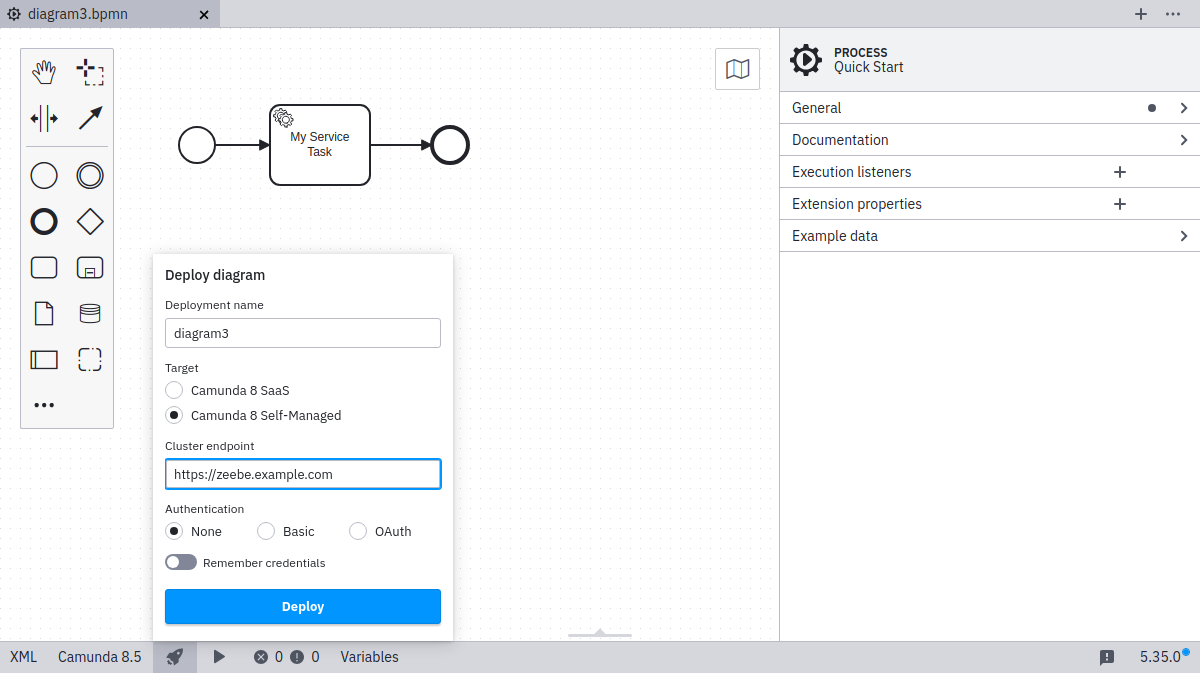

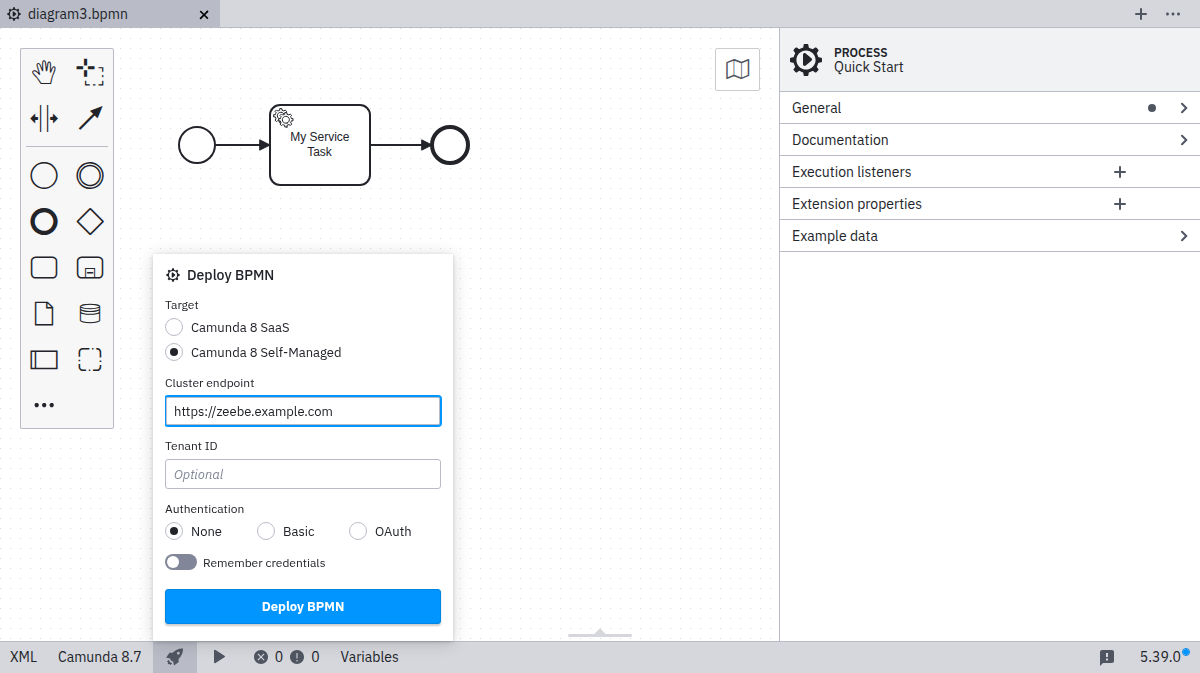

3. Input the Cluster endpoint:

   note

   You can connect to Camunda 8 both securely and insecurely through the https and http protocols.

   Secured connections to a remote endpoint will only be established if the remote server certificate is trusted by the app. Ensure that signing trusted roots and intermediate certificates are known to the app.

   caution

   Multi-tenancy is only available with authentication enabled through Identity, and enabled in all required components.



4. Select your authentication method, and input the required credentials:

   Basic

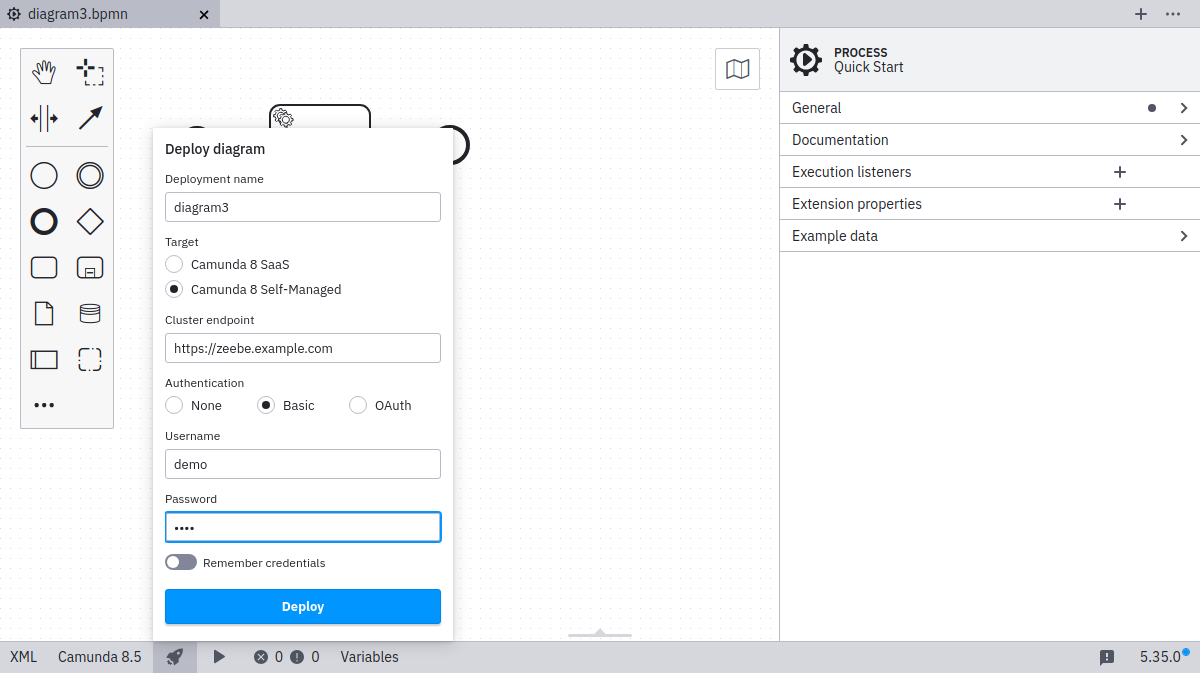

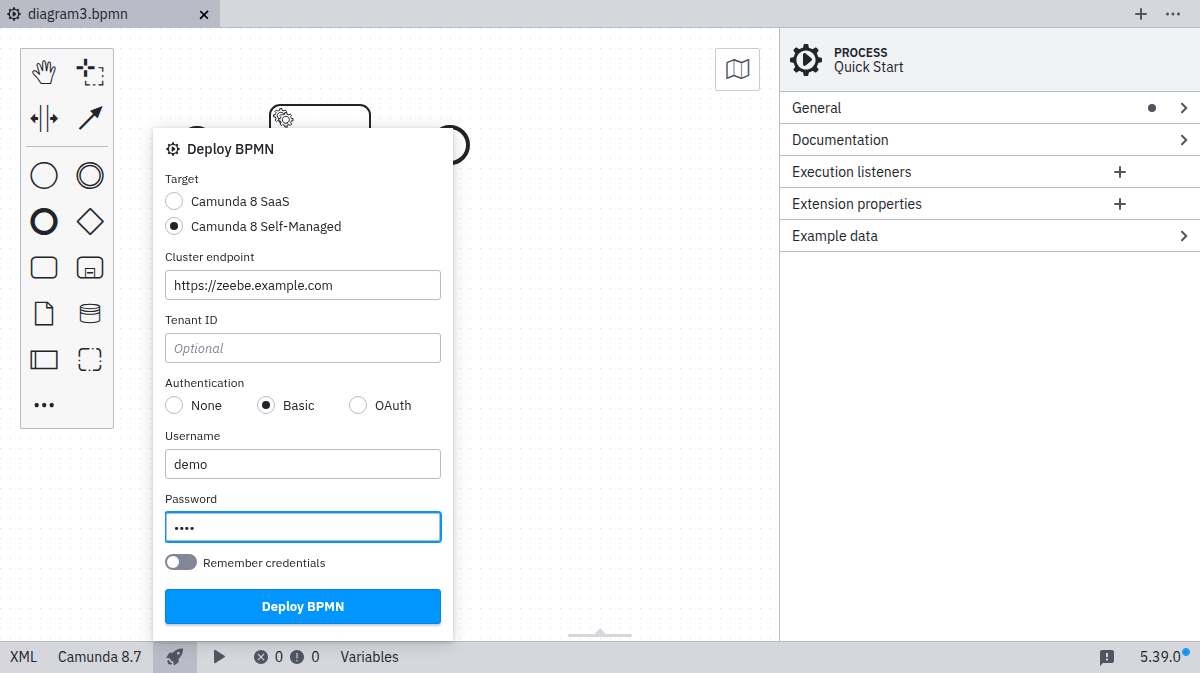

   For basic authentication, input your username and password:



   OAuth

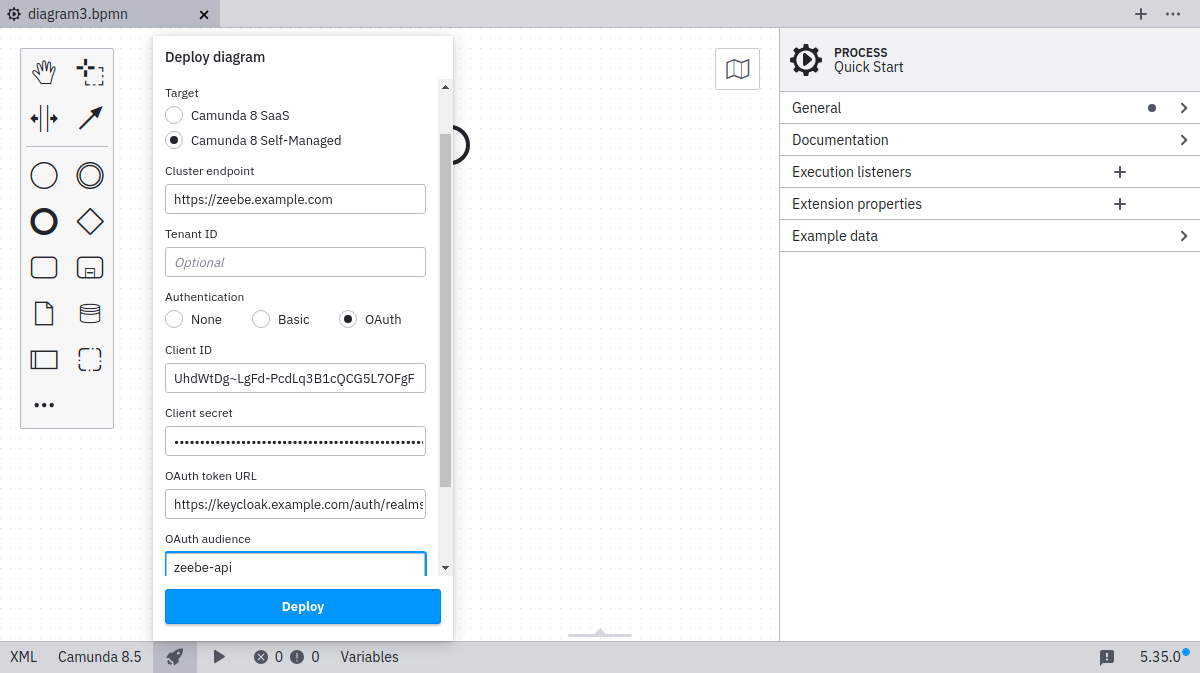

   For OAuth, input the credentials for your OAuth provider. These are configured as part of the default Helm installation and can be discovered in Identity, or are set by Zeebe environment variables.



   Name	Description	Example value
   Client ID	The name of your Zeebe client.	zeebe
   Client secret	The password of your Zeebe client.	zecret
   OAuth token url	The full path to the token endpoint.	https://<keycloak base url>/auth/realms/camunda-platform/protocol/openid-connect/token.
   OAuth audience	The permission name for Zeebe.	zeebe-api

5. Select the Remember checkbox if you want to locally store the connection information.

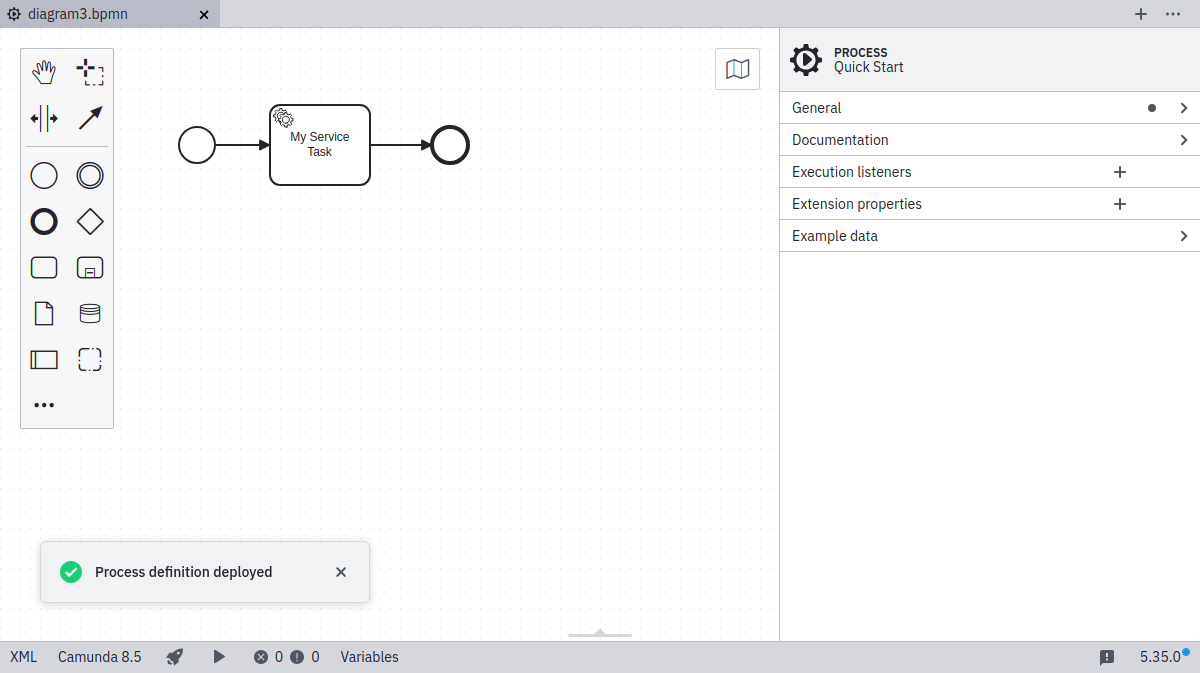

6. Click Deploy to perform the deployment.
