Tasklist index diagrams

The following index diagrams show Camunda Exporter indices for Tasklist.

tasklist-form​

diagram

tasklist-import-position​

diagram

tasklist-metric​

diagram

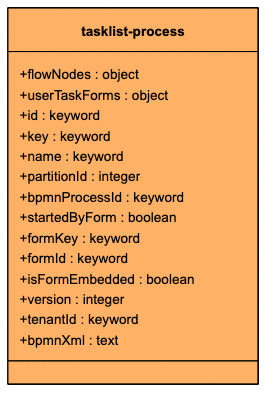

tasklist-process​

diagram

tasklist-user​

diagram

tasklist-draft-task-variable​

diagram

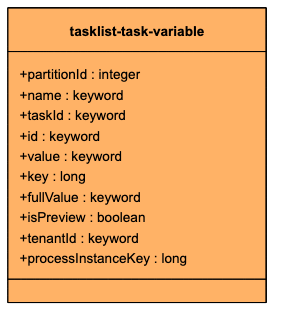

tasklist-task-variable​

diagram

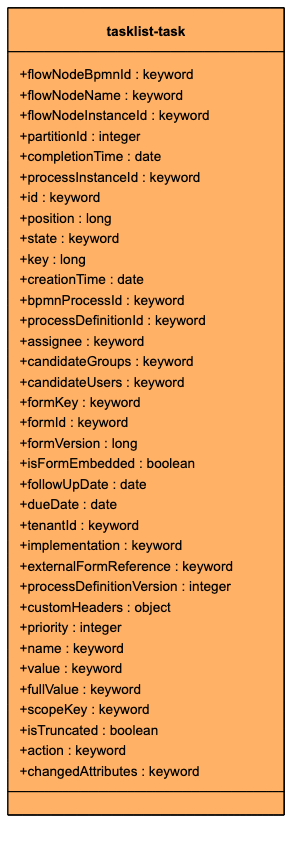

tasklist-task​

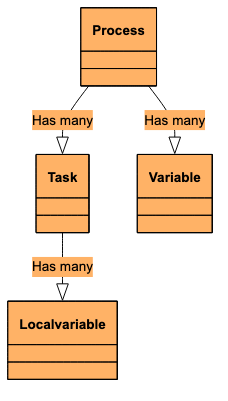

diagram diagram
