Migrate from Bitnami subcharts to Kubernetes operators

Migrate a Camunda 8 Helm installation from Bitnami-managed infrastructure (PostgreSQL, Elasticsearch, and Keycloak) to Kubernetes operator-managed equivalents:

• CloudNativePG for PostgreSQL
• Elastic Cloud on Kubernetes (ECK) for Elasticsearch
• Keycloak Operator for Keycloak

After migration, your setup will be aligned with the operator-based reference architecture.

When to use this guide

This guide is intended for customers running Camunda 8 with Bitnami subcharts enabled. If your installation already uses external databases, managed services, or operator-managed infrastructure, you do not need to migrate from Bitnami subcharts.

Read the topic overview to learn why you should migrate.

Choose your migration strategy

Before starting, choose between the standard migration and the warm reindex strategy. This choice affects how Elasticsearch data is transferred and, therefore, how long the downtime window lasts.

Standard

The standard migration performs all Elasticsearch data transfer during the cutover (Phase 3). Downtime scales linearly with Elasticsearch data volume, typically 5–60 minutes.

This is the simplest option and is recommended when:

• Your Elasticsearch data volume is small (< 1 GB) or moderate (< 10 GB).
• You can tolerate a longer maintenance window.
• You want the fewest moving parts.

Phase	Description	Downtime
Phase 1 – Deploy targets	Install operators and create target clusters alongside Bitnami	No
Phase 2 – Initial backup	Back up all data while the application is still running	No

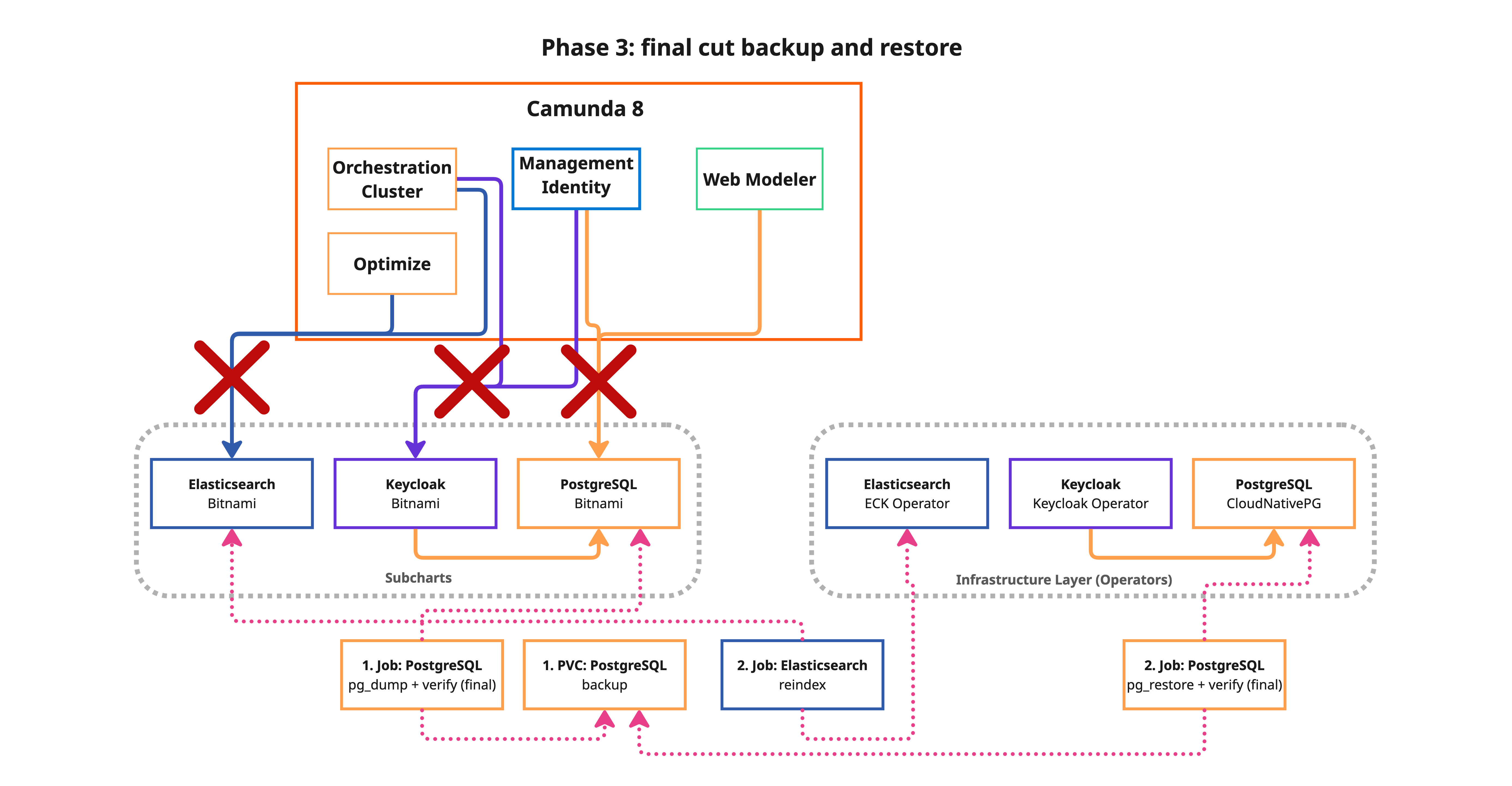

Phase 3 – Cutover	Freeze → final backup → full ES reindex → Helm upgrade	Yes (5–60 minutes typical)

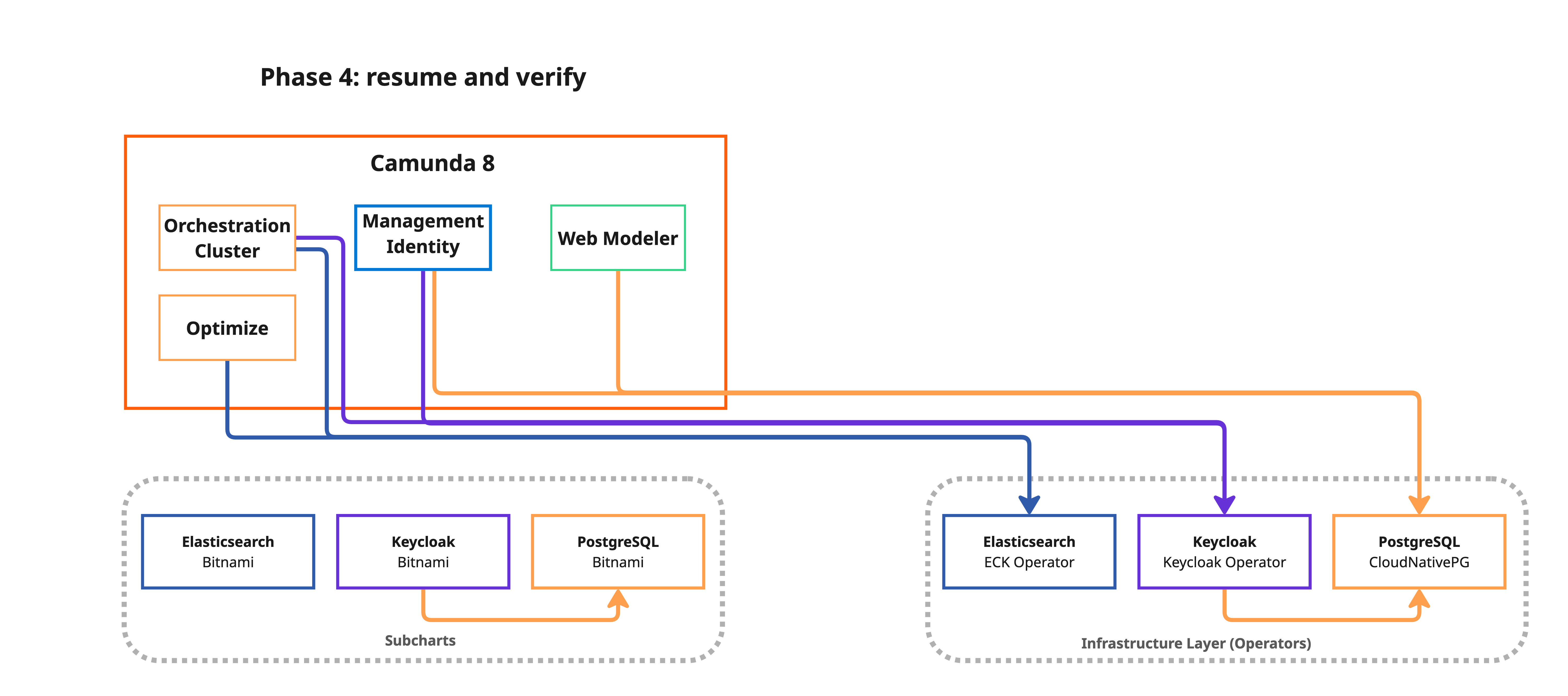

Phase 4 – Validate	Verify all components are healthy on the new infrastructure	No

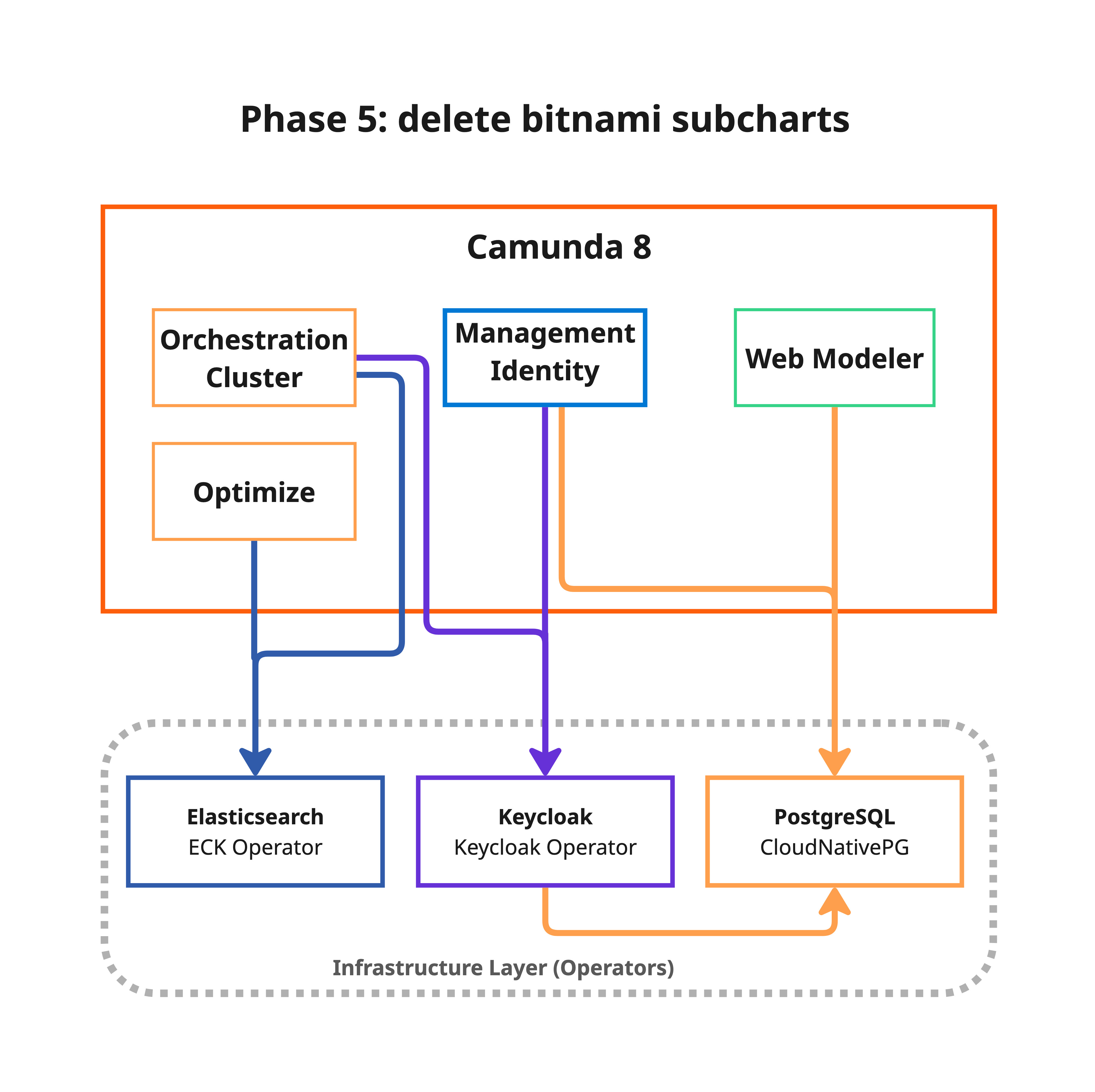

Phase 5 – Cleanup Bitnami	Remove old Bitnami resources and re-verify	No

Reduced downtime (warm reindex)

The warm reindex strategy pre-copies Elasticsearch data to the target during Phase 2, while the application is still running. At cutover, only a fast delta reindex is needed to sync changes written since Phase 2, significantly reducing the downtime window.

Choose this option when:

• Your Elasticsearch data volume is large (> 10 GB).
• You need to minimize the maintenance window.
• You can accept the additional complexity of a two-step ES migration.

To enable, set ES_WARM_REINDEX=true in env.sh.

Phase	Description	Downtime
Phase 1 – Deploy targets	Install operators and create target clusters alongside Bitnami	No
Phase 2 – Initial backup	Back up all data + full ES reindex to target (while app runs)	No

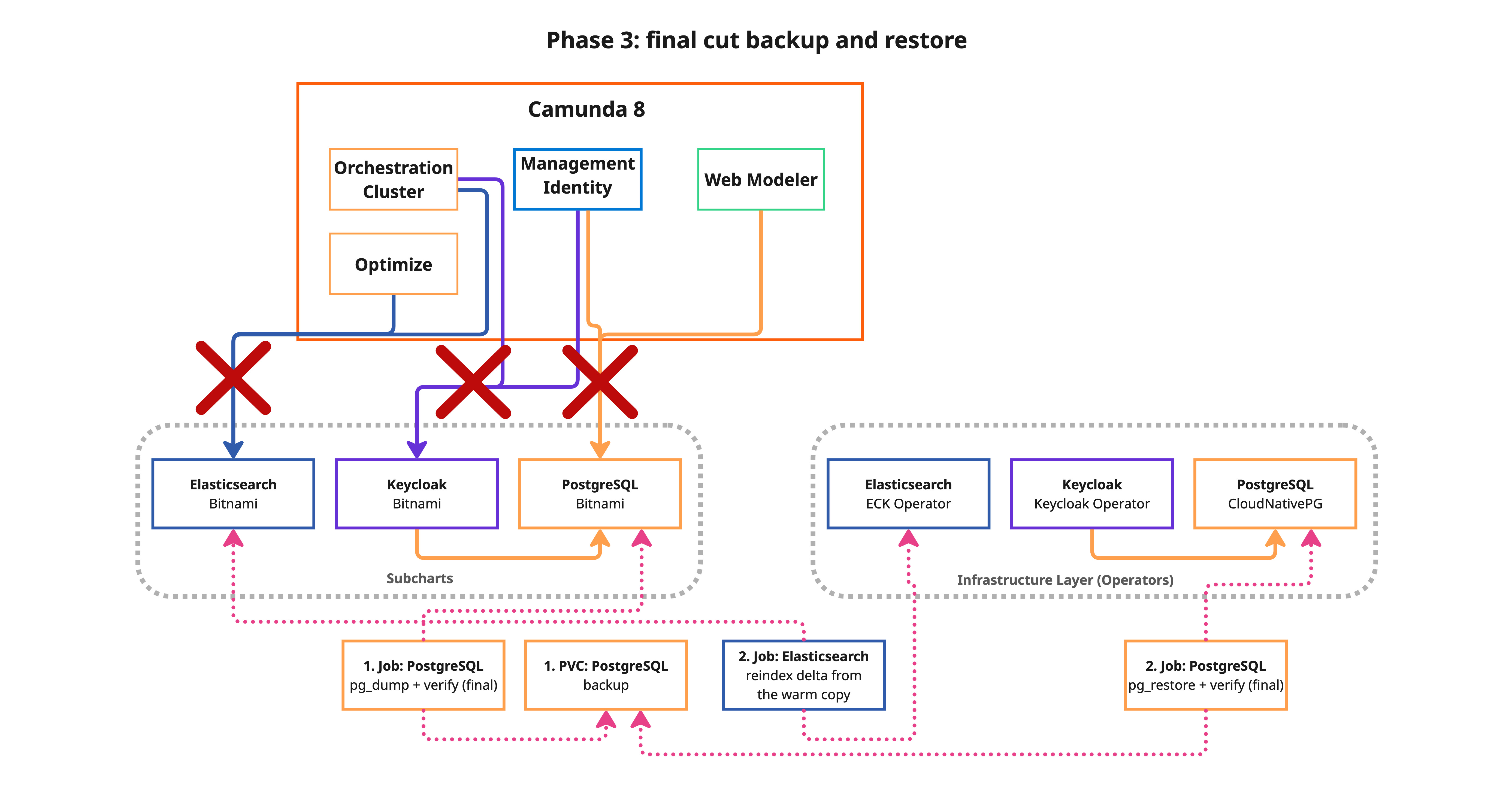

Phase 3 – Cutover	Freeze → final backup → delta ES reindex → Helm upgrade	Yes (~5 minutes)
Phase 4 – Validate	Verify all components are healthy on the new infrastructure	No
Phase 5 – Cleanup Bitnami	Remove old Bitnami resources and re-verify	No

Prerequisites

Before starting the migration, ensure you have the following general prerequisites:

• A running Camunda 8 installation using the Helm chart with Bitnami subcharts enabled
• kubectl configured and pointing to your cluster
• helm with the camunda/camunda-platform repository added
• Sufficient cluster resources to temporarily run both old and new infrastructure side-by-side
• A tested backup of your current installation (see Precautions)

Additionally, the migration scripts require:

• envsubst available (usually included in gettext)
• jq installed
• yq installed (for selective CloudNativePG cluster deployment)
• base64 and openssl available (used for credential management)

For the tool versions used and tested, check the .tool-versions file.

Precautions

Review the general precautions that apply to all migration paths.

Before running in production

Review the operational readiness checklist, including the staging rehearsal and pre-migration checklist, before starting a production migration.

Operator-specific precautions

These precautions are specific to the operator-based migration:

• Monitor resource quotas: CNPG and ECK clusters consume additional resources. Ensure your namespace quotas and node capacity allow for the temporary duplication.
• Elasticsearch reindex.remote.whitelist: The target ECK cluster must have reindex.remote.whitelist configured to allow pulling data from the source Bitnami Elasticsearch via the _reindex API. The migration scripts patch this automatically.
• Keycloak hooks: If you use a DNS CNAME for Keycloak, use the hooks/post-phase-3.sh hook to update the DNS target to the new Keycloak Operator service after cutover.

Clone the deployment references repository

The migration scripts are part of the Camunda deployment references repository. Clone the repository and navigate to the migration directory:

git clone https://github.com/camunda/camunda-deployment-references.git
cd camunda-deployment-references/generic/kubernetes/migration

The migration reuses the operator-based reference architecture scripts for deploying target infrastructure, ensuring consistency:

generic/kubernetes/
├── operator-based/                  # Reference architecture (reused by migration)
│   ├── postgresql/
│   │   ├── deploy.sh               #   CNPG operator + cluster deployment
│   │   ├── set-secrets.sh          #   PostgreSQL secret management
│   │   ├── postgresql-clusters.yml #   ★ CUSTOMIZE: PG cluster specs
│   │   ├── camunda-identity-values.yml
│   │   └── camunda-webmodeler-values.yml
│   ├── elasticsearch/
│   │   ├── deploy.sh               #   ECK operator + cluster deployment
│   │   ├── elasticsearch-cluster.yml #   ★ CUSTOMIZE: ES cluster specs
│   │   └── camunda-elastic-values.yml
│   └── keycloak/
│       ├── deploy.sh               #   Keycloak operator + CR deployment
│       ├── keycloak-instance-*.yml #   ★ CUSTOMIZE: Keycloak CR specs
│       ├── camunda-keycloak-domain-values.yml
│       └── camunda-keycloak-no-domain-values.yml
│
└── migration/                       # Migration scripts
    ├── env.sh                       # Configuration variables
    ├── lib.sh                       # Shared library (do not edit)
    ├── 1-deploy-targets.sh          # Phase 1: Deploy operators + clusters
    ├── 2-backup.sh                  # Phase 2: Initial backup
    ├── 3-cutover.sh                 # Phase 3: Freeze → Restore → Switch
    ├── 4-validate.sh                # Phase 4: Validate everything
    ├── 5-cleanup-bitnami.sh         # Phase 5: Remove old Bitnami resources
    ├── rollback.sh                  # Emergency rollback
    ├── .state/                      # Migration state tracking (auto-generated)
    ├── hooks/                       # Custom hook scripts (optional)
    ├── jobs/                        # Kubernetes Job templates
    │   ├── pg-backup.job.yml
    │   ├── pg-restore.job.yml
    │   ├── es-backup.job.yml        #   ES health verification
    │   └── es-restore.job.yml       #   ES reindex-from-remote restore
    └── manifests/
        ├── backup-pvc.yml           # Shared backup PVC
        └── eck-migration-patch.yml  # ES reindex.remote.whitelist patch

Step 1: Configure the migration

Edit env.sh to match your current Camunda installation:

Show details: env.sh reference

generic/kubernetes/migration/env.sh

loading...

See full example on GitHub

Key configuration variables

Variable	Default	Description
NAMESPACE	camunda	Kubernetes namespace of your Camunda installation
CAMUNDA_RELEASE_NAME	camunda	Helm release name
CAMUNDA_HELM_CHART_VERSION	(chart version)	Target Helm chart version for the upgrade
CAMUNDA_DOMAIN	(empty)	Domain for Keycloak Ingress. Leave empty for port-forward setups
IDENTITY_DB_NAME	identity	Identity database name (must match the source installation)
IDENTITY_DB_USER	identity	Identity database user (must match the source installation)
KEYCLOAK_DB_NAME	keycloak	Keycloak database name (must match the source installation)
KEYCLOAK_DB_USER	keycloak	Keycloak database user (must match the source installation)
WEBMODELER_DB_NAME	webmodeler	Web Modeler database name (must match the source installation)
WEBMODELER_DB_USER	webmodeler	Web Modeler database user (must match the source installation)
BACKUP_PVC	migration-backup-pvc	PVC name for storing backup data
BACKUP_STORAGE_SIZE	50Gi	Backup PVC size (must fit all database dumps)
MIGRATE_IDENTITY	true	Enables the Identity PostgreSQL database migration
MIGRATE_KEYCLOAK	true	Enables the Keycloak and its PostgreSQL database migration
MIGRATE_WEBMODELER	true	Enables the Web Modeler PostgreSQL database migration
MIGRATE_ELASTICSEARCH	true	Enables the Elasticsearch data migration
ES_WARM_REINDEX	false	When true, pre-copies ES data during Phase 2 (no downtime), reducing Phase 3 to a ~5 minute delta sync.

Set any MIGRATE_* variable to false to skip a component. This is useful, for example, if the component isn't deployed or already uses an external service.

Operator-specific variables

These variables control the operator deployments. Defaults work for most setups:

Variable	Default	Description
CNPG_OPERATOR_NAMESPACE	cnpg-system	Namespace for the CloudNativePG operator
ECK_OPERATOR_NAMESPACE	elastic-system	Namespace for the ECK operator
CNPG_IDENTITY_CLUSTER	pg-identity	CNPG cluster name for Identity
CNPG_KEYCLOAK_CLUSTER	pg-keycloak	CNPG cluster name for Keycloak
CNPG_WEBMODELER_CLUSTER	pg-webmodeler	CNPG cluster name for Web Modeler
ECK_CLUSTER_NAME	elasticsearch	ECK Elasticsearch cluster name

Source env.sh

Once you've configured the environment variables, source the file:

source env.sh

Step 2: Customize operator manifests

Before running the migration, you must review and customize the operator-based manifests to match your production requirements. The migration deploys operators and instances using these manifests. The default settings may not be appropriate for your workload.

Follow this guidance while reviewing the manifests:

Component	Must review before production	Defaults may be acceptable for
PostgreSQL	Storage size, replica count, CPU and memory, connection-related parameters	Short-lived staging rehearsals with representative data
Elasticsearch	Node count, storage size, JVM and resource limits	Dry runs where you only validate the workflow
Keycloak	Hostname, Ingress or route mode, replica count, resource limits	Non-production validation only

If you are rehearsing the migration for the first time, keep the manifests simple but ensure storage is at least as large as the existing Bitnami volumes. Before production, revisit the sizing based on the timings and load observed during rehearsal.

PostgreSQL (CloudNativePG)

Review the CloudNativePG (CNPG) cluster specifications in operator-based/postgresql/postgresql-clusters.yml. Key settings to verify:

• Storage size (must be >= your current Bitnami PVC sizes)
• Number of replicas
• PostgreSQL version
• Resource requests and limits
• PostgreSQL parameters (for example, shared_buffers and max_connections)

Show details: CloudNativePG manifest reference

generic/kubernetes/operator-based/postgresql/postgresql-clusters.yml

loading...

See full example on GitHub

Elasticsearch (ECK)

The migration patches the reference ECK cluster manifest from operator-based/elasticsearch/elasticsearch-cluster.yml at runtime to add reindex.remote.whitelist support for data transfer via the _reindex API. Review the base manifest:

• Node count
• Storage size (must be >= your current Bitnami ES PVC size)
• Resource requests and limits

Show details: Elasticsearch manifest reference

generic/kubernetes/operator-based/elasticsearch/elasticsearch-cluster.yml

loading...

See full example on GitHub

Keycloak

Review the Keycloak Custom Resource in operator-based/keycloak/. For the broader deployment context and Helm values layering, see operator-based infrastructure. Choose the appropriate variant:

• keycloak-instance-domain-nginx.yml — if you have a domain with nginx Ingress
• keycloak-instance-domain-openshift.yml — for OpenShift deployments with Routes
• keycloak-instance-no-domain.yml — for port-forward setups

Key settings to verify:

• Replicas
• Resource limits
• Hostname configuration

Keycloak 26 hostname configuration

The Keycloak Custom Resource uses the v2 hostname provider (Keycloak 25+). The hostname field must include the full URL with scheme and path — for example, https://your-domain.example.com/auth. This ensures that the OIDC issuer URL is consistent and includes the /auth path prefix used by http-relative-path. The v1 hostname provider (Keycloak 24 and earlier) is not compatible with these manifests.

Step 3: Run the migration

The migration follows five sequential phases. Each phase is idempotent and can, therefore, be rerun safely.

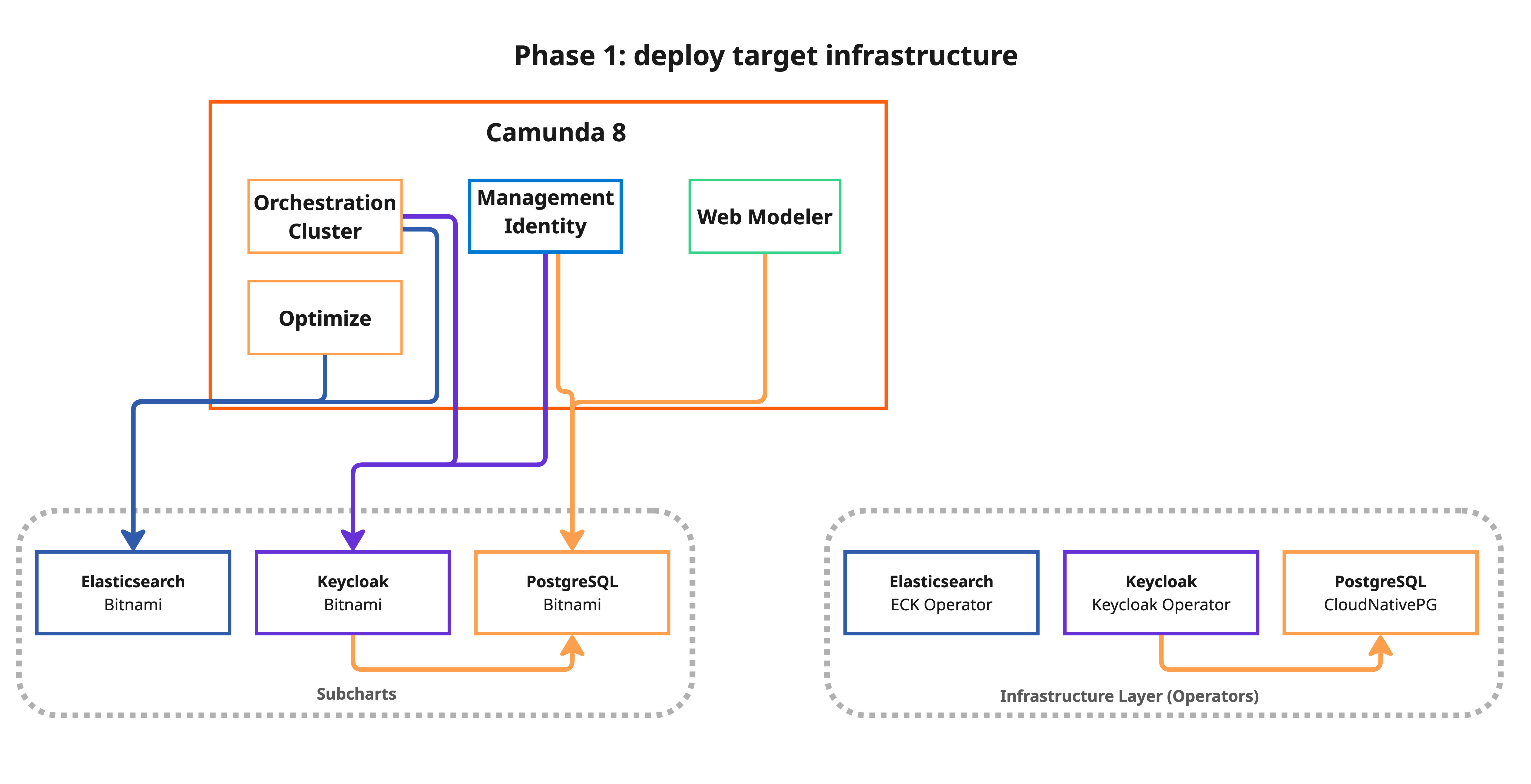

Phase 1: Deploy target infrastructure (no downtime)

This phase installs the Kubernetes operators and creates the target clusters alongside your existing Bitnami components. Your application continues to run normally:

bash 1-deploy-targets.sh

What happens:

1. The script displays a customization warning and asks for confirmation.
2. It validates target resource allocations (CPU, memory, and PVC sizes) against your current Bitnami StatefulSets.
3. It installs the CloudNativePG operator and creates PostgreSQL clusters for each component.
4. It installs the ECK operator and creates an Elasticsearch cluster with reindex.remote.whitelist configured for data migration via the _reindex API.
5. It installs the Keycloak Operator and creates the Keycloak Custom Resource.

The script only deploys operators for components that are being migrated. For example, if MIGRATE_ELASTICSEARCH=false, the ECK operator is not installed.

All targets are created empty; no traffic is routed to them yet.

Show details: Phase 1 script reference

generic/kubernetes/migration/1-deploy-targets.sh

loading...

See full example on GitHub

Phase 2: Initial backup (no downtime)

Standard

Reduced downtime (warm reindex)

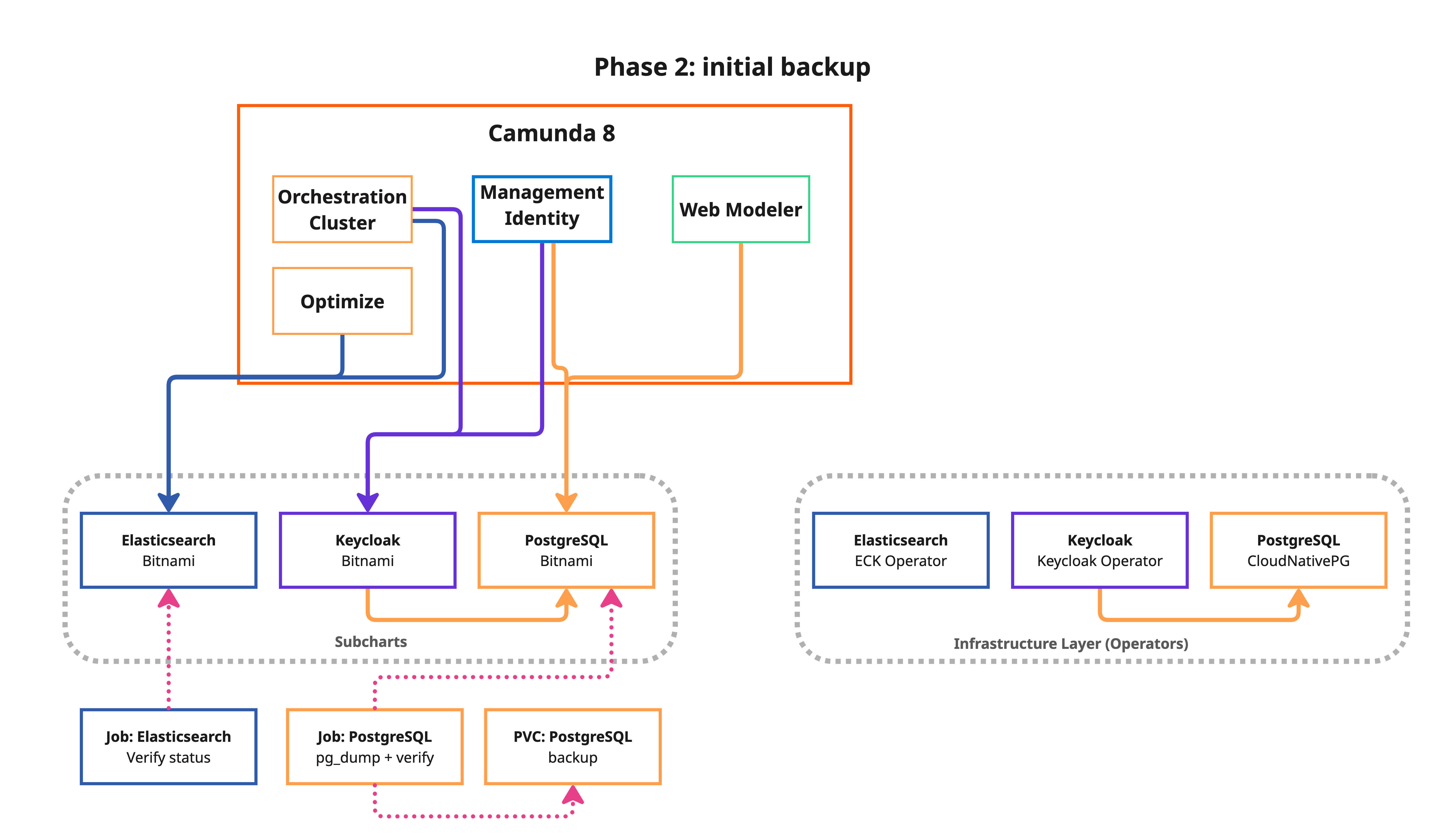

This phase takes a backup of all data sources while the application is still running. This reduces the cutover window in Phase 3.

bash 2-backup.sh

Standard

What happens:

1. PostgreSQL: A pg_dump Kubernetes Job is created for each component (Identity, Keycloak, and Web Modeler).
2. Elasticsearch (ES): A verification job checks source ES health and lists all Camunda indices to be migrated.
3. All backup data is stored on a shared Persistent Volume Claim (PVC).

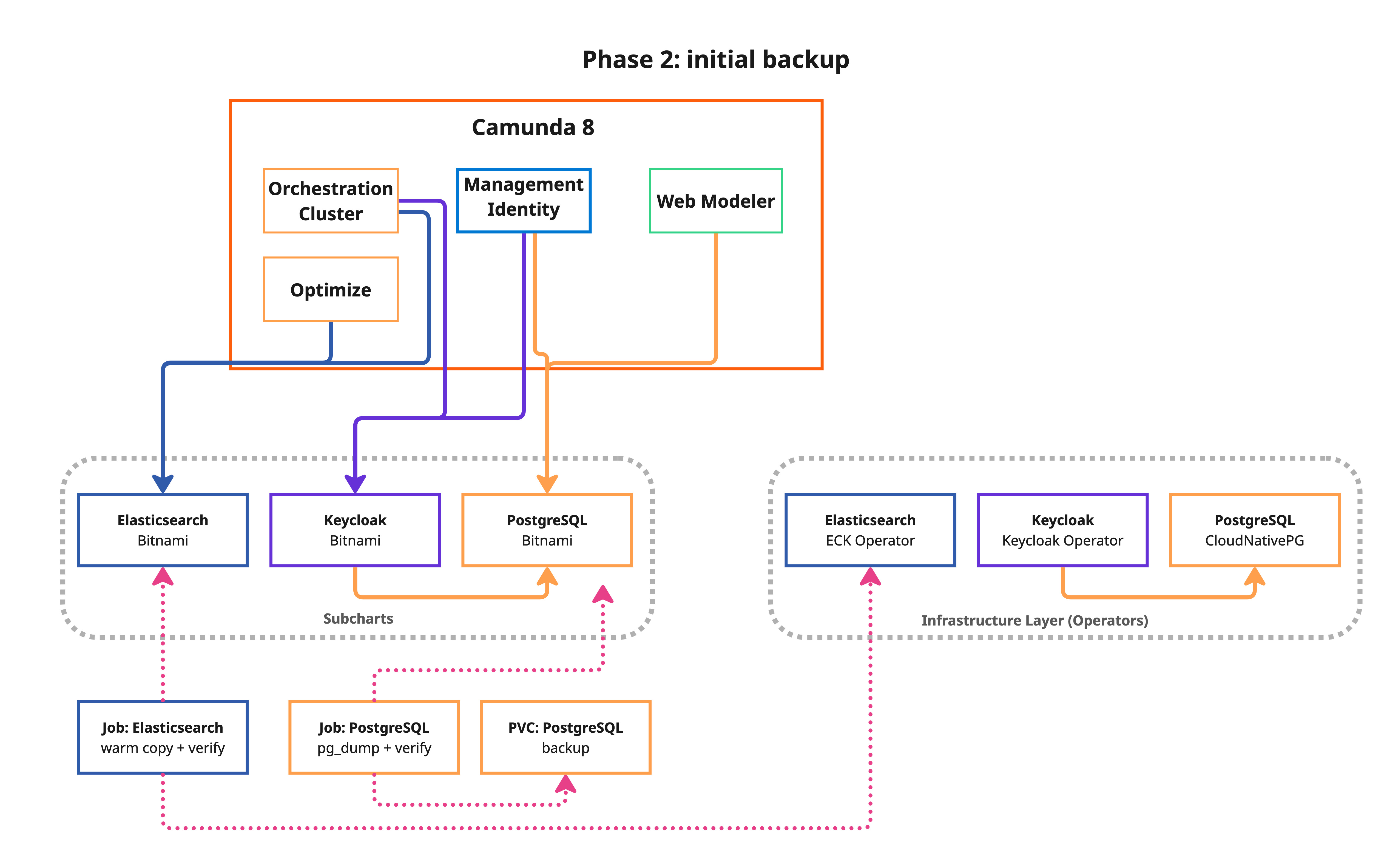

Reduced downtime (warm reindex)

What happens:

1. PostgreSQL: A pg_dump Kubernetes Job is created for each component (Identity, Keycloak, and Web Modeler).
2. Elasticsearch (ES): A verification job checks source ES health and lists all Camunda indices to be migrated.
3. Elasticsearch warm reindex: A full reindex from the source Bitnami ES to the target is performed while the application is still running. This pre-populates the target with all existing data so Phase 3 only needs a fast delta reindex. The warm reindex may take a significant amount of time depending on your data volume, but it runs without any downtime.
4. All backup data is stored on a shared Persistent Volume Claim (PVC).

Reference templates used in this phase:

Show details: PostgreSQL backup job template

generic/kubernetes/migration/jobs/pg-backup.job.yml

loading...

See full example on GitHub

Show details: Elasticsearch verification job template

generic/kubernetes/migration/jobs/es-backup.job.yml

loading...

See full example on GitHub

Show details: Phase 2 script reference

generic/kubernetes/migration/2-backup.sh

loading...

See full example on GitHub

Phase 3: Cutover (downtime required)

Standard

Reduced downtime (warm reindex)

Maintenance window required

This is the only phase that causes downtime. Schedule a maintenance window before proceeding.

Standard

Downtime typically lasts 5–60 minutes, depending on Elasticsearch data volume. See downtime estimation for benchmarked timings.

Reduced downtime (warm reindex)

With ES_WARM_REINDEX=true, downtime is reduced to ~5 minutes regardless of Elasticsearch data volume. Phase 3 only syncs the delta written since the warm reindex in Phase 2.

Measure downtime before the real cutover

You can run bash 3-cutover.sh --estimate to measure the actual cutover duration on your environment without causing any downtime. This runs the real data operations (PG backup/restore and ES reindex) against the target infrastructure but skips freezing the application and the Helm upgrade. See Measure with --estimate for details.

bash 3-cutover.sh

Standard

What happens:

1. Save current Helm values for rollback.
2. Freeze all Camunda deployments and StatefulSets (scale to zero replicas).
3. Final backup — consistent backup with no active connections to ensure data integrity.
4. Restore data to the new operator-managed targets:
   • pg_restore to CNPG clusters for each PostgreSQL database.
   • Elasticsearch full reindex from remote — all indices are copied from the source Bitnami ES to the ECK cluster using the _reindex API. This is the dominant factor in downtime duration.
5. Sync Keycloak admin credentials — copies the restored admin password to the Keycloak Operator secret so Keycloak and Identity stay in sync.
6. Helm upgrade — reconfigures Camunda to use the new backends and restarts all components.

Reduced downtime (warm reindex)

What happens:

1. Save current Helm values for rollback.
2. Freeze all Camunda deployments and StatefulSets (scale to zero replicas).
3. Final backup — consistent backup with no active connections to ensure data integrity.
4. Restore data to the new operator-managed targets:
   • pg_restore to CNPG clusters for each PostgreSQL database.
   • Elasticsearch delta reindex — only documents written between Phase 2 (warm reindex) and the freeze are synced. This uses version_type=external with conflicts=proceed to skip documents already present on the target, making it dramatically faster than a full reindex.
5. Sync Keycloak admin credentials — copies the restored admin password to the Keycloak Operator secret so Keycloak and Identity stay in sync.
6. Helm upgrade — reconfigures Camunda to use the new backends and restarts all components.

Reference templates used in this phase:

Show details: PostgreSQL restore job template

generic/kubernetes/migration/jobs/pg-restore.job.yml

loading...

See full example on GitHub

Show details: Elasticsearch restore job template

generic/kubernetes/migration/jobs/es-restore.job.yml

loading...

See full example on GitHub

Show details: Phase 3 script reference

generic/kubernetes/migration/3-cutover.sh

loading...

See full example on GitHub

Phase 4: Validate (no downtime)

bash 4-validate.sh

This phase verifies all components are healthy:

• All Camunda deployments and StatefulSets are ready.
• CNPG PostgreSQL clusters report a healthy state.
• ECK Elasticsearch cluster is in Ready phase with restored indices.
• Keycloak Custom Resource is ready.
• A migration report is generated at .state/migration-report.md.

Show details: Phase 4 script reference

generic/kubernetes/migration/4-validate.sh

loading...

See full example on GitHub

Wait before cleanup

Do not move on to the next phase immediately after validation. Operate with the new infrastructure through at least one full business cycle (for example, a complete weekday with peak traffic) to confirm stability. Once Bitnami resources are deleted, rollback is no longer possible without restoring from backup. If you need to fail back, run bash rollback.sh before this phase (see rollback).

Phase 5: Cleanup Bitnami resources (no downtime)

Destructive and irreversible

This phase permanently deletes old Bitnami StatefulSets, PVCs, and the migration backup PVC. After cleanup, rollback to Bitnami subcharts is no longer possible.

Before running this phase, strongly consider:

1. Taking a full backup of all databases (pg_dumpall or equivalent)
2. Taking PVC or storage volume snapshots (cloud provider snapshots)
3. Storing backups in cold storage—for example, S3 Glacier or GCS Archive
4. Keeping rollback artifacts in .state/ as a safety net

After confirming the migration is successful, remove old Bitnami StatefulSets, PVCs, services, and the migration backup PVC:

bash 5-cleanup-bitnami.sh

What happens:

1. The script requires Phase 4 to be completed and displays a destructive operation warning with a confirmation prompt.
2. Deletes old Bitnami PostgreSQL StatefulSets, their PVCs, and headless services (for each migrated component: Identity, Keycloak, and Web Modeler).
3. Deletes old Bitnami Elasticsearch StatefulSet, PVCs, and services.
4. Deletes old Bitnami Keycloak StatefulSet.
5. Deletes the migration backup PVC.
6. Reverifies that all Camunda components and operator-managed targets remain healthy after cleanup.
7. Suggests removing the reindex.remote.whitelist setting from the ECK Elasticsearch configuration as a post-cleanup step.

The script checks whether each resource exists before attempting deletion, so it can be safely rerun if interrupted.

Show details: Phase 5 script reference

generic/kubernetes/migration/5-cleanup-bitnami.sh

loading...

See full example on GitHub

Migration hooks

The migration scripts support custom hooks that run before or after each phase. See migration hooks for the full reference and examples.

Rollback

If the migration fails or produces unexpected results, you can roll back to the pre-cutover state:

bash rollback.sh

This restores the previous Helm values (re-enabling Bitnami subcharts) and restarts Camunda on the original infrastructure. The operator-managed resources (CNPG clusters, ECK, and Keycloak Custom Resource) are not deleted, allowing you to retry or debug.

Show details: Rollback script reference

generic/kubernetes/migration/rollback.sh

loading...

See full example on GitHub

Rollback is available after Phase 3 (cutover). Before that, simply stop the migration; your Bitnami infrastructure is still active and untouched.

Downtime estimation

Only Phase 3 (cutover) causes downtime. The estimates below were measured on minimal Kubernetes clusters with standard storage. Production clusters with faster storage and networking will perform significantly better. Always run a staging rehearsal with representative data volumes to measure your actual downtime.

Standard

Reference timings

The following timings were observed migrating a Camunda 8 installation with all components (Identity, Keycloak, Web Modeler, and Elasticsearch):

Data profile	ES data	PG data (3 databases)	Observed downtime
Minimal (fresh install)	< 100 MB	~30 MB	~4 min
Large (~6.5 million ES docs)	~9 GB	~30 MB	~40 min

Phase 3 breakdown

Step	Duration	Notes
Freeze components (scale → 0)	~10 s	Scale down all deployments and StatefulSets
PostgreSQL backup + restore	~40 s	pg_dump / pg_restore for all databases (usually negligible at moderate sizes)
Elasticsearch reindex	~38 min	(Dominant factor) Copies all indices via the _reindex API
Helm upgrade + restart	~2 min	Reconfigure backends and restart all components

Estimates by Elasticsearch data volume

ES Data Volume	Estimated Downtime	Bottleneck
< 1 GB	~5 minutes	Helm upgrade + pod startup
1–10 GB	~10–40 minutes	ES reindex
10–50 GB	~40 minutes–2 hours	ES reindex
> 50 GB	2+ hours	ES reindex

Key observations

• Elasticsearch reindex dominates downtime. With ~9 GB of ES data, the reindex step accounts for ~95% of the total cutover time. PostgreSQL backup and restore completes in under a minute regardless of reasonable data sizes.
• Downtime scales linearly with ES data volume. The largest indices — such as Optimize process instance history — drive the overall duration.
• Your cluster will likely be faster. These timings were measured on constrained test infrastructure. Production clusters with NVMe storage, dedicated nodes, and higher network bandwidth typically achieve much higher reindex throughput.
• Always measure in staging. Run the full migration on a staging environment with representative data volumes to get an accurate downtime estimate for your specific setup.

Reduced downtime (warm reindex)

Reference timings

With ES_WARM_REINDEX=true, the bulk of the Elasticsearch data transfer happens during Phase 2 (no downtime). Phase 3 only needs a fast delta reindex to sync documents written between Phase 2 and the freeze:

Data profile	ES data	PG data (3 databases)	Observed downtime
Minimal (fresh install)	< 100 MB	~30 MB	~4 min
Large (~6.5 million ES docs)	~9 GB	~30 MB	~5 min (delta only)

Phase 3 breakdown (warm reindex)

Step	Duration	Notes
Freeze components (scale → 0)	~10 s	Scale down all deployments and StatefulSets
PostgreSQL backup + restore	~40 s	pg_dump / pg_restore for all databases
ES delta reindex	~1–2 min	Only documents written after Phase 2 warm reindex need to be synced
Helm upgrade + restart	~2 min	Reconfigure backends and restart all components

Estimates by Elasticsearch data volume

ES Data Volume	Standard downtime	Warm reindex downtime	Notes
< 1 GB	~5 minutes	~5 minutes	No significant benefit at small volumes
1–10 GB	~10–40 minutes	~5 minutes	Warm reindex eliminates the bottleneck
10–50 GB	~40 minutes–2 hours	~5 minutes	Most impactful reduction
> 50 GB	2+ hours	~5 minutes	Critical for large data volumes

Key observations

• ES delta reindex is nearly instant. After the warm reindex pre-copies all existing data in Phase 2, only new documents created between Phase 2 and the freeze need to be synced. The delta reindex uses version_type=external and conflicts=proceed to efficiently skip up-to-date documents.
• Downtime becomes data-volume independent. The dominant factor (ES reindex) is removed from the critical path. Downtime is determined by the freeze, PG restore, and Helm upgrade steps (~5 minutes total).
• Phase 2 takes longer. The warm reindex adds runtime to Phase 2 proportional to your ES data volume, but this runs without any downtime.

Measure with --estimate

You can measure the actual cutover duration on your environment without causing any downtime:

# After completing Phases 1 and 2:
bash 3-cutover.sh --estimate

This runs the real PG backup/restore and ES reindex operations against the target infrastructure but skips freezing the application and the Helm upgrade. The application remains fully operational throughout.

Use this to:

• Measure real timing with your actual data volumes before scheduling a maintenance window.
• Validate ES reindex throughput on your cluster hardware (storage, network, CPU).
• Compare standard vs. warm reindex — run Phase 2 once without ES_WARM_REINDEX, estimate with bash 3-cutover.sh --estimate, then enable ES_WARM_REINDEX=true, rerun Phase 2, and estimate again.

The estimate does not mark Phase 3 as complete, so you can run the real cutover afterwards with bash 3-cutover.sh.

The estimate restores data to the target backends (CNPG, ECK, or managed services). This is harmless — the real cutover overwrites with the final consistent backup taken after freezing the application.

Troubleshooting

A migration job fails

Check the job logs for details:

# List migration jobs
kubectl get jobs -n ${NAMESPACE} -l migration.camunda.io/type

# View logs for a specific job
kubectl logs -n ${NAMESPACE} job/<job-name>

# Describe the job for events
kubectl describe job <job-name> -n ${NAMESPACE}

Each phase is idempotent; you can rerun it after fixing the issue.

PostgreSQL restore fails with permission errors

When restoring to CNPG, the pg_restore command uses --no-owner --no-privileges flags to avoid permission mismatches. If you see errors related to ownership, verify that the target database user has the correct permissions:

kubectl exec -it <cnpg-primary-pod> -n ${NAMESPACE} -- psql -U postgres -c "\\du"

Elasticsearch reindex fails

The ES restore uses the _reindex API to pull data from the source Bitnami Elasticsearch to the target ECK cluster. Both clusters must be reachable within the same namespace. Check that the source ES is still running and accessible:

# Check if source ES is reachable from the target
kubectl exec -it <eck-pod> -n ${NAMESPACE} -- \
  curl -s http://${CAMUNDA_RELEASE_NAME}-elasticsearch:9200/_cluster/health

If the reindex fails for specific indices, check the job logs for mapping conflicts or timeout errors. You can delete the problematic indices on the target and rerun Phase 3.

Migration status check

View the current migration progress:

bash 1-deploy-targets.sh --status

This shows which phases have been completed and their timestamps.

State tracking

The scripts maintain migration state in .state/migration.env, a plain key-value file that records phase completion timestamps and deployment decisions. Each run appends to .state/migration-YYYY-MM-DD.log. The .state/ directory is local and gitignored. To reset state and start over, run:

rm -rf .state/

Operational readiness

Before running this migration in production, use the checklist below to reduce risk and confirm the cutover plan is ready.

Staging rehearsal

1. Clone your production environment to a staging cluster with the same Helm chart version, same component configuration, and comparable data volumes.
2. Run the full migration end to end in staging, including all five phases: deploy, backup, cutover, validate, and cleanup.
3. Measure actual timings: record how long each phase takes, especially the 3-cutover.sh phase, as it determines your downtime window. The benchmarked timings show that Elasticsearch reindex dominates. Expect downtime to scale linearly with your ES data volume.
4. Test rollback: after a successful staging migration, intentionally run bash rollback.sh to verify you can revert cleanly.

tip

Use a representative data set; empty databases migrate in seconds but do not reveal the Elasticsearch reindex bottleneck that large datasets will. As a reference, ~9 GB of ES data takes ~40 min on minimal test infrastructure, whereas production clusters with faster storage and networking will perform significantly better.

Production dry-run

The migration scripts support a --dry-run flag that shows what would be executed without making changes:

bash 1-deploy-targets.sh --dry-run
bash 2-backup.sh --dry-run
bash 3-cutover.sh --dry-run

Review the output carefully. Ensure that all Kubernetes resources, secrets, and Helm values match your expectations before removing --dry-run.

Pre-migration checklist

Before starting the migration in production:

• Notify stakeholders: announce the maintenance window at least 48 hours in advance. Include expected start time, duration (measured in staging), and impact on end users.
• Verify backups: confirm your existing backup strategy (Velero, volume snapshots, or cloud provider backups) has a recent successful backup. The migration creates its own backup, but an independent one provides an additional safety net.
• Scale down non-essential consumers: if you have external systems consuming Camunda APIs, consider pausing them during the freeze window to prevent data inconsistencies.
• Check cluster resources: ensure the cluster has enough CPU, memory, and storage to run both old and new infrastructure simultaneously during the migration—both exist briefly.
• Review env.sh: double-check all variables, especially NAMESPACE, CAMUNDA_RELEASE_NAME, PG_TARGET_MODE, and ES_TARGET_MODE.
• Monitor readiness: have dashboards open for cluster health, pod status, and storage capacity.

Failback procedure

If the migration succeeds but you discover issues in the hours or days following:

1. Immediate failback (before Phase 5 when Bitnami PVCs still exist): run bash rollback.sh to revert the Helm values and re-attach to the original Bitnami StatefulSets.
2. Late failback (after Phase 5 when Bitnami PVCs have been deleted): restore from the backup taken during Phase 2 or from your independent backup.

warning

Once you delete the old Bitnami PVCs (during post-migration cleanup), rollback is no longer trivial. Keep the old resources until your team has observed the system under production load through at least one full business cycle (for example, a complete weekday with peak traffic). Only proceed with cleanup once you are confident the new infrastructure is stable.

Data safety measures

• All pg_dump backups are stored on a dedicated PVC (migration-backup-pvc) that persists independently of the migration.
• Elasticsearch snapshots are stored in a registered repository and retained according to the configured retention policy.
• The migration scripts are idempotent: rerunning a phase that was interrupted picks up where it left off.
• No Bitnami resources are deleted during Phases 1–4; they're only disconnected from the Helm release. Phase 5 explicitly removes them after validation.

Post-migration monitoring

After completing the migration, monitor the following for at least 48 hours:

• Pod restarts: kubectl get pods -n ${NAMESPACE} --watch
• CNPG cluster health: kubectl get clusters -n ${NAMESPACE} (should show Cluster in healthy state)
• ECK cluster health: kubectl get elasticsearch -n ${NAMESPACE} (should show green)
• Camunda component logs: check for connection errors, authentication failures, or data inconsistencies.
• Process instance completion: verify that in-flight process instances continue to execute correctly.
• Zeebe export lag: confirm that Zeebe exporters are writing to the new Elasticsearch without delays.
