Camunda Exporter indices diagrams
Index diagrams for all the Camunda Exporter indices.
Operate indices
The following index diagrams show Camunda Exporter indices for Operate.
- operate-decision-requirements
- operate-decision
- operate-metric
- operate-migration-steps-repository
- operate-process
- operate-user
- operate-batch-operation
- operate-decision-instance
- operate-event
- operate-flownode-instance
- operate-incident
- operate-job
- operate-list-view
- operate-message
- operate-operation
- operate-post-importer-queue
- operate-sequence-flow
- operate-variable

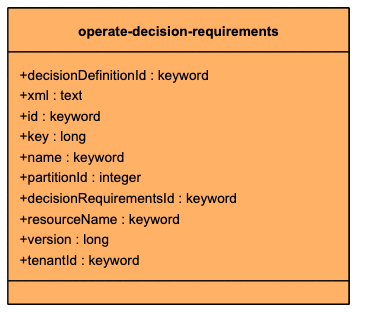

operate-decision-requirements

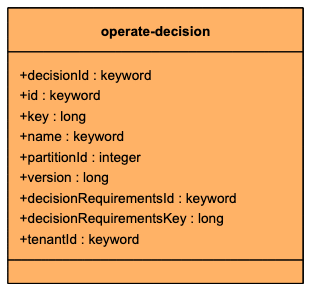

operate-decision
operate-metric
operate-migration-steps-repository

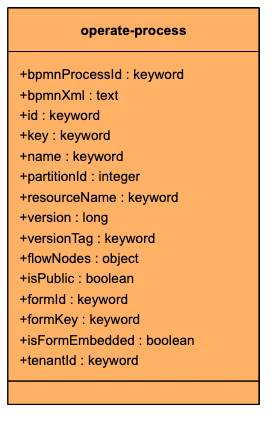

operate-process
operate-user

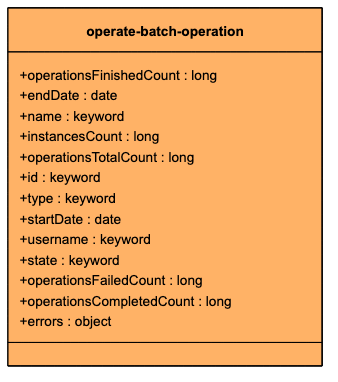

operate-batch-operation

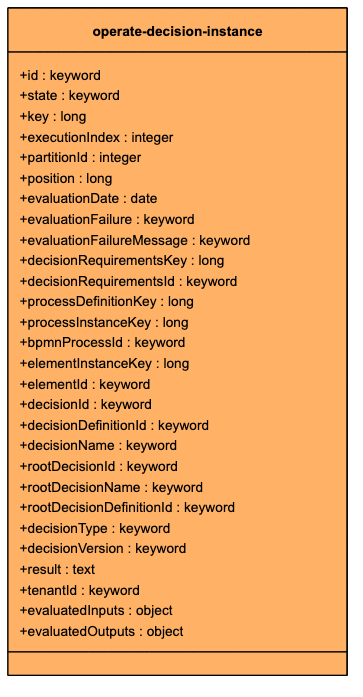

operate-decision-instance

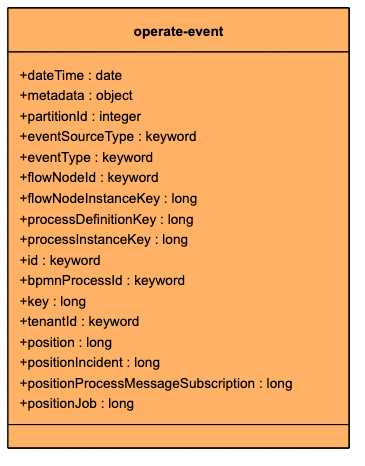

operate-event

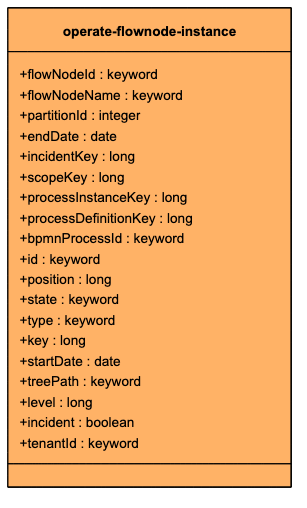

operate-flownode-instance

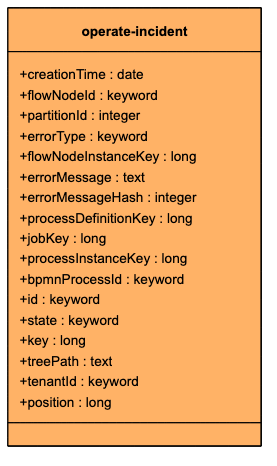

operate-incident

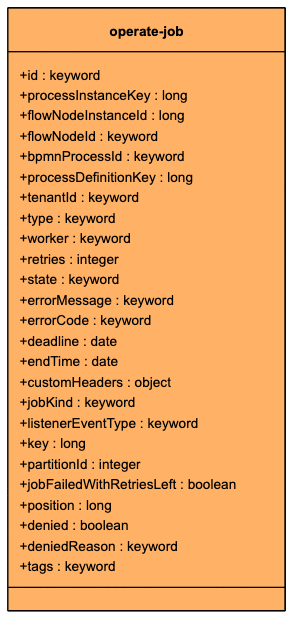

operate-job

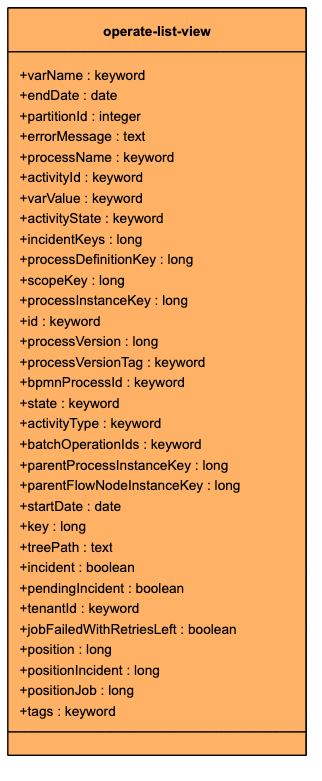

operate-list-view

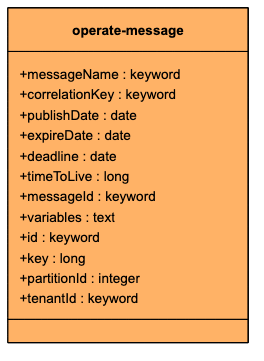

operate-message

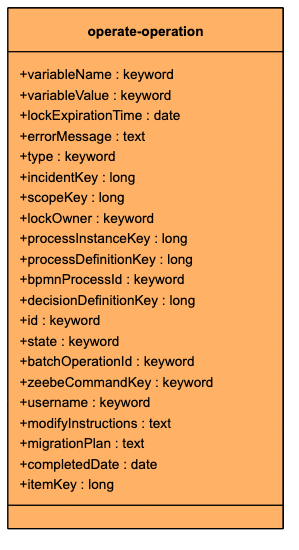

operate-operation

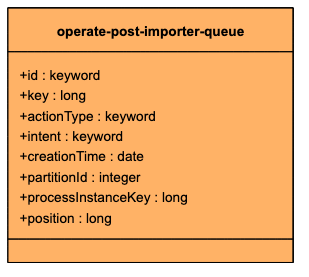

operate-post-importer-queue
operate-sequence-flow

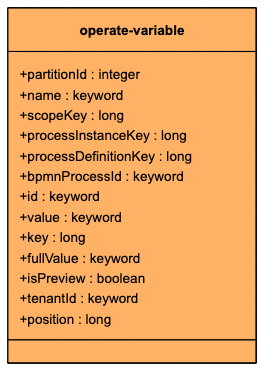

operate-variable
Tasklist indices
The following index diagrams show Camunda Exporter indices for Tasklist.
- tasklist-form
- tasklist-metric
- tasklist-process
- tasklist-user
- tasklist-draft-task-variable
- tasklist-task-variable
- tasklist-task
tasklist-form
tasklist-metric
tasklist-process
tasklist-user
tasklist-draft-task-variable
tasklist-task-variable
tasklist-task
Camunda Identity indices
The following index diagrams show Camunda Exporter indices for Camunda identity.
- camunda-authorization
- camunda-group
- camunda-mapping
- camunda-role
- camunda-tenant
- camunda-user
- camunda-web-session
camunda-authorization
camunda-group
camunda-mapping
camunda-role
camunda-tenant
camunda-user
camunda-web-session
