Versions

Camunda 8 only

You can create a version at any time to save a snapshot of your BPMN or DMN diagram.

You can restore a version to revert to a previous snapshot of your diagram, for example if you make a mistake while modeling. You can also compare two versions to see the differences between them.

Versions list

You can use the versions list to view, compare, and manage your diagram versions.

To view the versions list, either:

• Select Show versions from the action menu.



• Select Show versions from the breadcrumb menu.



Create a version

You can create a new version either from your diagram or the versions list.

• From your diagram, select Create version from the breadcrumb menu.



• From the versions list, hover over the draft in the Versions panel and select Create a new version.



note

A new version is also automatically created when dragging and dropping a file into the diagram view, or when you select the Replace via upload option from the breadcrumb menu.

Bulk version creation

A process application is a special type of Web Modeler folder that allows you to work on a set of related files and deploy them as a single bundle with just one click. This reduces the risk of having a broken deployment at runtime, and makes it more convenient to deploy related files.

If you create a version on the main process of a process application, versions are created for all other assets in the application, to make it easier to track or revert changes. See create a bulk version.

note

Versions of resources belonging to a process application are tied to the main process and cannot be modified.

Compare versions

You can compare the change history between two versions, either visually as a diagram or as code in an XML diff layout.

1. Open the versions list for your diagram.
2. Ensure that the sidebar Show changes toggle is turned on.
3. Select the version that you want to compare. The previous version is automatically selected for comparison.

note

Turn off the sidebar Show changes toggle to view individual versions without comparison to the previous version.

Compare versions in visual view

To view BPMN diagram changes visually, select the Visual view tab.

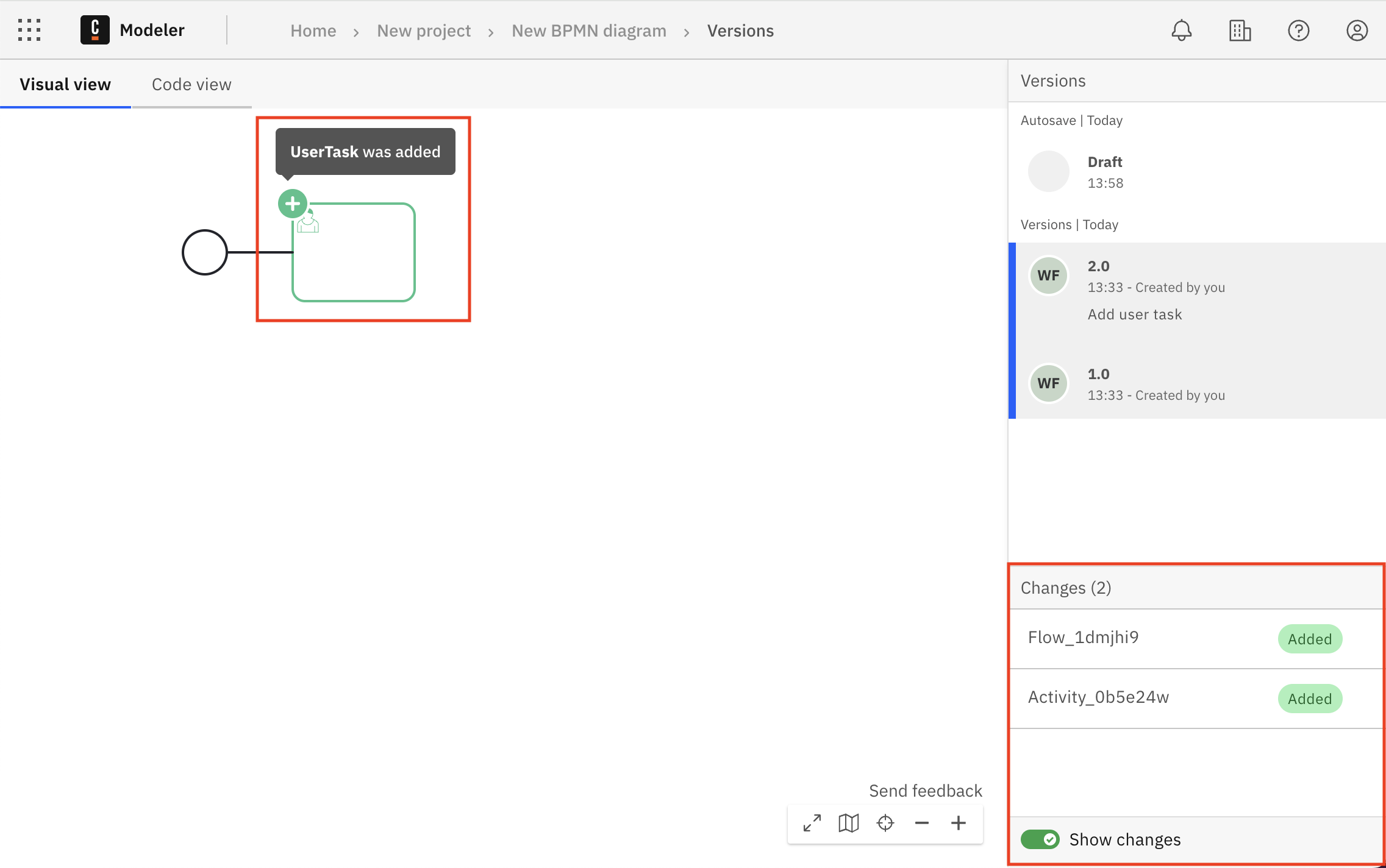

• Differences between the versions are highlighted visually on the diagram. For example, if an element was added, this change is highlighted in green with a plus symbol. Hover over a change to view more details.
• Only differences that affect the execution of the BPMN process are highlighted.
• The sidebar Changes list shows the details of each change, including the type and identifier. Select a change to highlight it.

note

You can only use the Code view to compare changes in a DMN diagram. The Visual view only shows a view of the version.

Compare versions in code view

To view BPMN and DMN diagram changes as code in an XML diff layout, select the Code view tab.

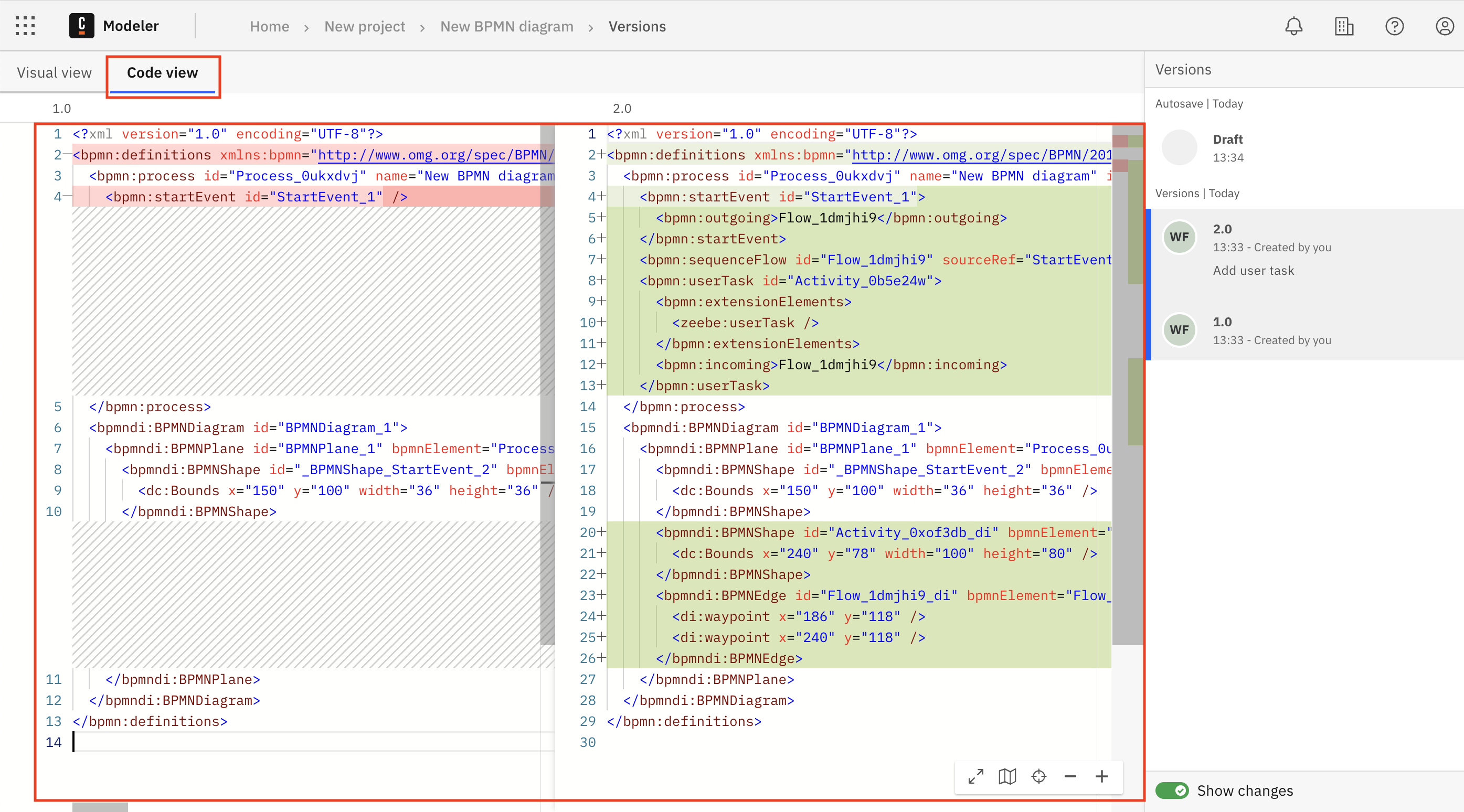

• The XML for the previous version is shown on the left, with the currently selected version shown on the right.
• Differences between the versions are highlighted in the XML. For example, if an element was added, this change is highlighted in green.

Restore a version

You can restore a version to revert to a previous snapshot of your diagram.

1. In the sidebar Versions list, hover over the version you want to restore.
2. Select the three vertical dots to open the actions menu.

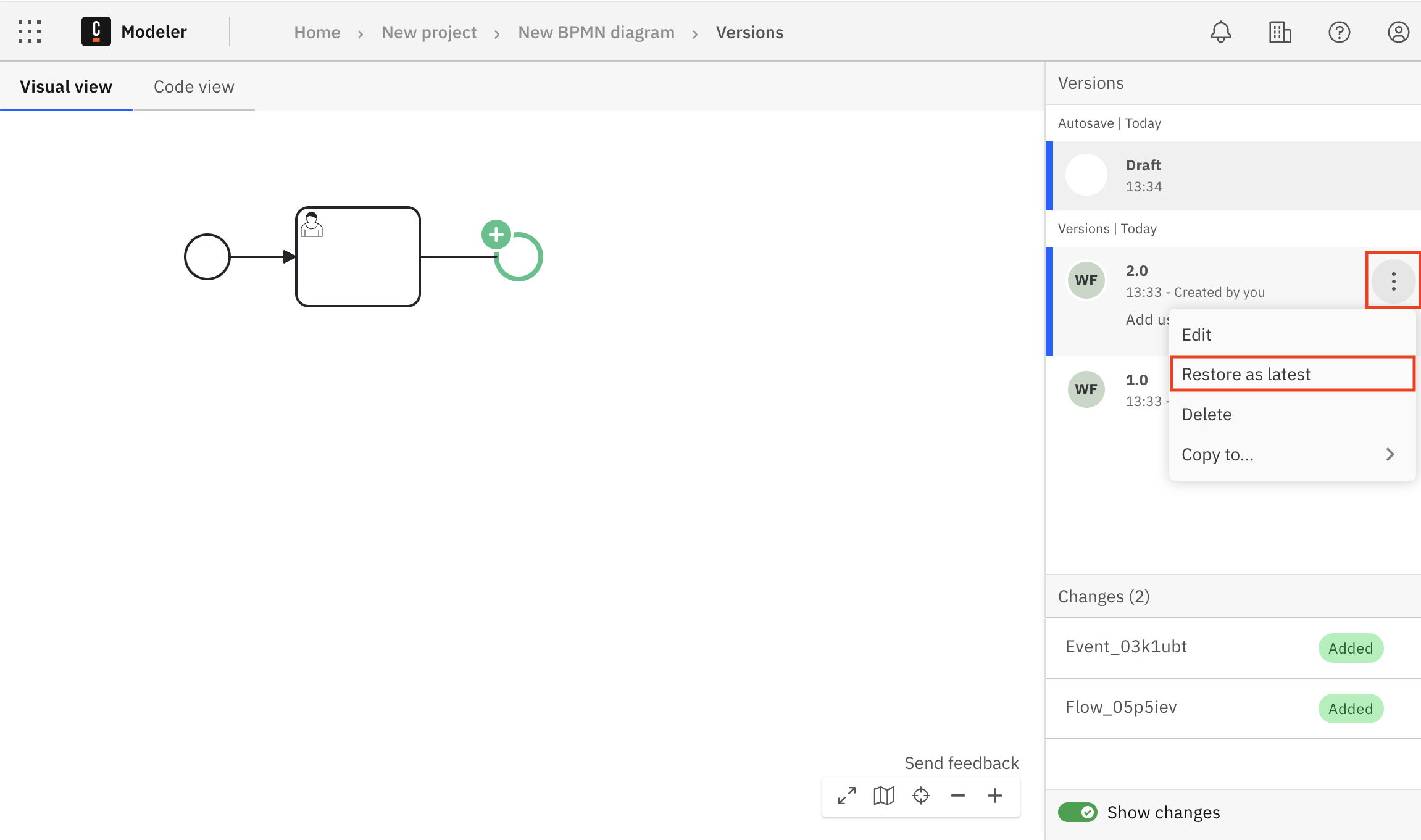

3. Select Restore as latest.

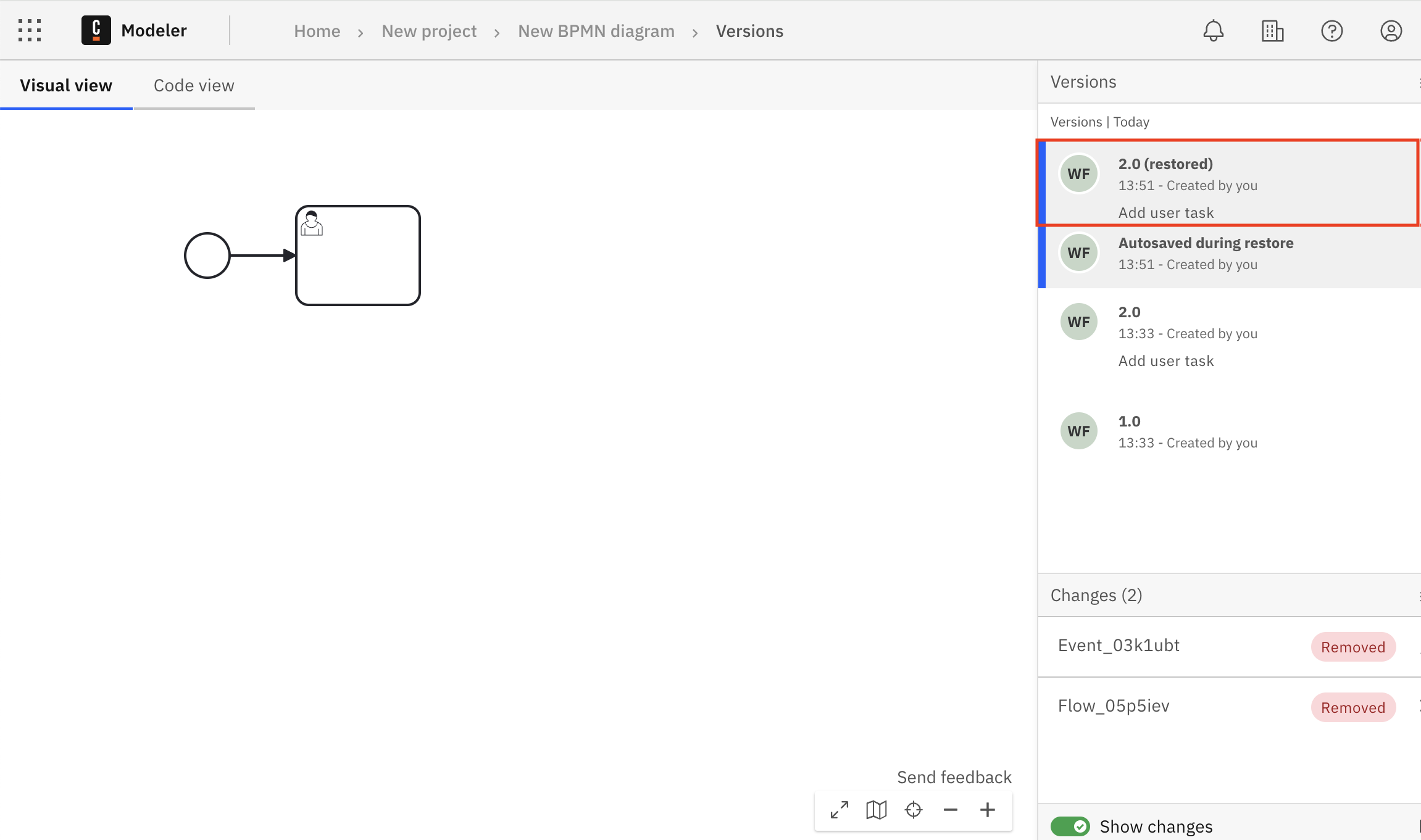

The diagram reverts to the restored version. A new version is created with "(restored)" appended to the name.

Copy a diagram version

You can create a new diagram by copying a specific version.

1. In the sidebar Versions list, hover over the diagram version you want to copy.
2. Select the three vertical dots to open the actions menu.
3. Select Copy to....
4. Choose a project/folder and select Copy here to create the new diagram in the chosen folder.

Rename a version

You can rename a version at any time.

1. In the sidebar Versions list, hover over the version you want to rename.
2. Select the three vertical dots to open the actions menu.
3. Select Edit name and enter a new name for the version.

Delete a version

You can permanently delete a version.

1. In the sidebar Versions list, hover over the version you want to rename.
2. Select the three vertical dots to open the actions menu.
3. Select Delete.
4. You are prompted to confirm the deletion.
   • Select Delete version to permanently delete the version.
   • Select Cancel to cancel the deletion and return to the versions list.

caution

Deleting a version is permanent. You cannot access a deleted version, and it is removed from the versions list.
