Play mode for rapid validation
Play is a Zeebe-powered playground environment within Web Modeler for validating a process at any stage of development. Developers can debug their process logic, testers can manually test the process, and process owners can demo to stakeholders - all within Play.
Opening Play
To use Play, open a BPMN diagram and click the Play tab. Read the limitations and availability section if this section is missing.
In Self-Managed, you will be prompted to provide the details of your cluster:
This starts a Play environment that utilizes your selected development cluster in SaaS, or the specified cluster in a Self-Managed setup.
The current version of the active process and all its dependencies, like called processes or DMN files, are automatically deployed to the Play environment. An error or warning is raised if a file fails to deploy, is missing, or a Connector secret isn’t filled out.
In SaaS, Play uses Connector secrets from your selected cluster. Connector secrets are not currently supported in Self-Managed.
Get started with Play

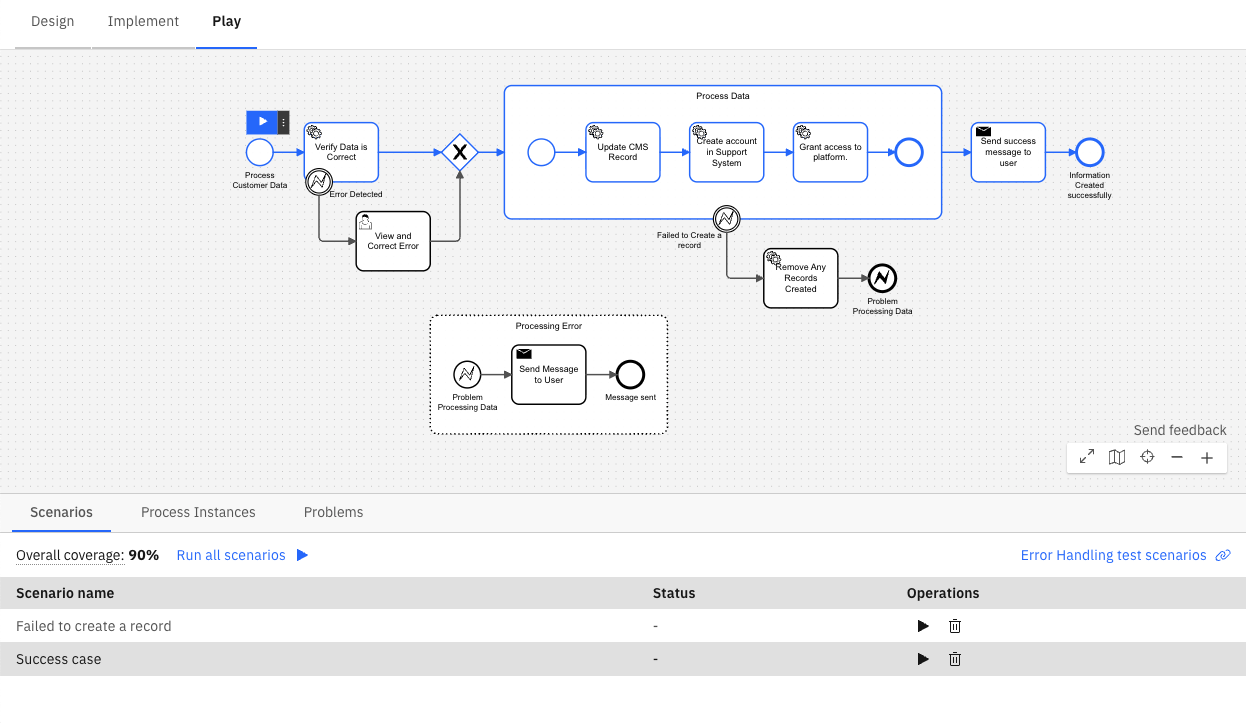

The first view in Play is the process definition view. It shows deployment problems, active process instances, and start events.
Click a start event's play button to begin your process. Open the button's menu to start a process with variables. These variables can also be prefilled from the example data defined for the start event in Implement mode.
Alternatively, save example data to the BPMN file directly from the modal in Play to reuse it in future sessions or share it with others.
Play presents this example data in a readable JSON format, as illustrated below. See data handling for additional details.
Play a process
Click the action icons next to a task or event to play the process.
The Instance History panel tracks the path taken throughout the diagram.
The Variables panel tracks the data collected. Global variables are shown by default. To view local variables, select the corresponding task or event. Variables can be edited or added here, and Play supports JSON format to represent complex data.
Play executes all logic of the process and its linked files, such as FEEL, forms, DMN tables, and outbound Connectors.
Actions in Play can be initiated through Operate, Tasklist, or external APIs. For example, you can complete a user task via Tasklist, finish a service task using an external job worker, or cancel/modify your instance through Operate, with all changes reflected in Play.
In SaaS, view your process instance in Operate by selecting the Process Instance Key in the header.
You have a few options to mock an external system:
- In Implement mode, hard-code an example payload in the task or event's Example data section in the properties panel.
- When completing a task or event, use the secondary action to complete it with variables.
- When filling forms or setting variables from Play, you can also save the variables to the BPMN file as example data to reuse them in future sessions.
- Use service task placeholders instead of connectors
Play automatically uses example data from the BPMN file for many events and task types. If you want to use different data, you can override the example data by opening the secondary action menu on an element. The new data set will take precedent over the example data from the BPMN file for future Play sessions.
Incidents are raised in Play just like in Operate. Use the variables and incident messages to debug the process instance.
Replay a process

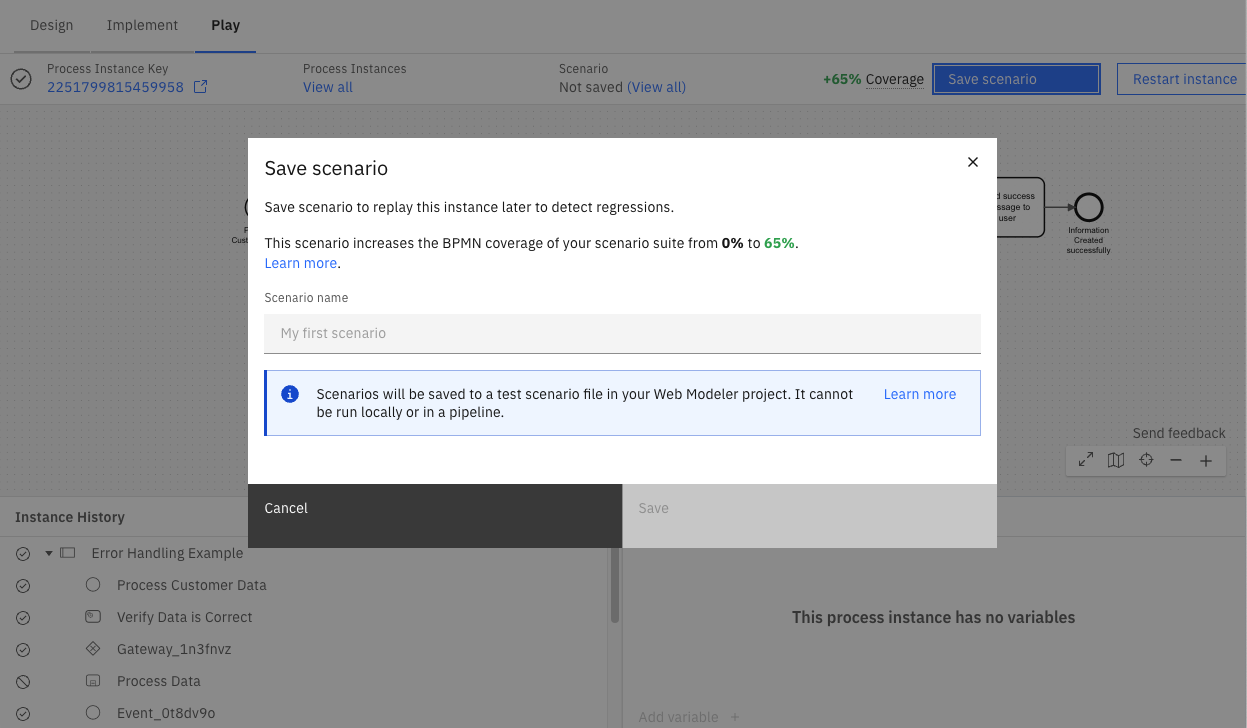

To replay a process, rewind to an earlier element by clicking on the Rewind button on a previously completed element.
You can also return to the definition view by clicking View all on the top banner, or start a new process instance by clicking on the Restart process button on the start event.
Rewind a process
After completing part of your process, you can rewind to a previous element to test a different scenario. Play will start a new instance and replay your actions up to, but not including, the selected previous task.
Play's rewind operation currently does not support the following elements:
- Call activities
- Timer events that complete without being skipped
Additional limitations
- If you completed an unsupported element before rewinding, you will rewind farther than expected.
- Play rewinds to an element, not to an element instance. For example, if you wanted to rewind your process to a sequential multi-instance service task which ran five times, it will rewind your process to the first instance of that service task.
- Play rewinds processes by initiating a new instance and executing each element. However, if any element behaves differently from the previous execution, such as a Connector returning a different result, the rewind may fail.
Modify a process instance
There are two main reasons to modify a process instance in Play:
- Skip elements: If your process is stuck, you can continue testing by skipping over elements. For instance, rather than waiting for a 24-hour timer event to elapse or resolving an incident, you can manually advance the active token from the timer event to the next flow node.
- Faster prototyping: Rather than completing the entire process, you can skip over unnecessary sections of a large diagram to debug the changes you made.
There are three ways to modify your process instance:
- Add token: Select the flow node where you'd like to initiate a new token and select Add from the modification dropdown.
- Cancel tokens: Select the flow node where you'd like to cancel active tokens and select Cancel from the modification dropdown.
- Move tokens: Select the flow node from which you'd like to move active tokens and select Move from the modification dropdown. Then, select a target flow node to relocate the tokens.
Unlike in Operate, these changes are applied immediately. If you need to change variables while modifying a process, use the Variables panel to set them separately. Alternatively, for advanced use cases you can modify the process instance from Operate.
Limitations
Rewinding a process instance that has modifications applied to is currently not supported. Additionally, some elements do not support specific modifications:
- Add token/Move tokens to modifications are not possible for the following element types:
- Start events
- Boundary events
- Events attached to event-based gateways
- Move tokens from modification is not possible for a subprocess itself.
- Add token/Move tokens to modifications are currently not possible for elements with multiple running scopes.
- All tokens of a multi-instance element are moved or canceled at the same time.
Rapid iteration

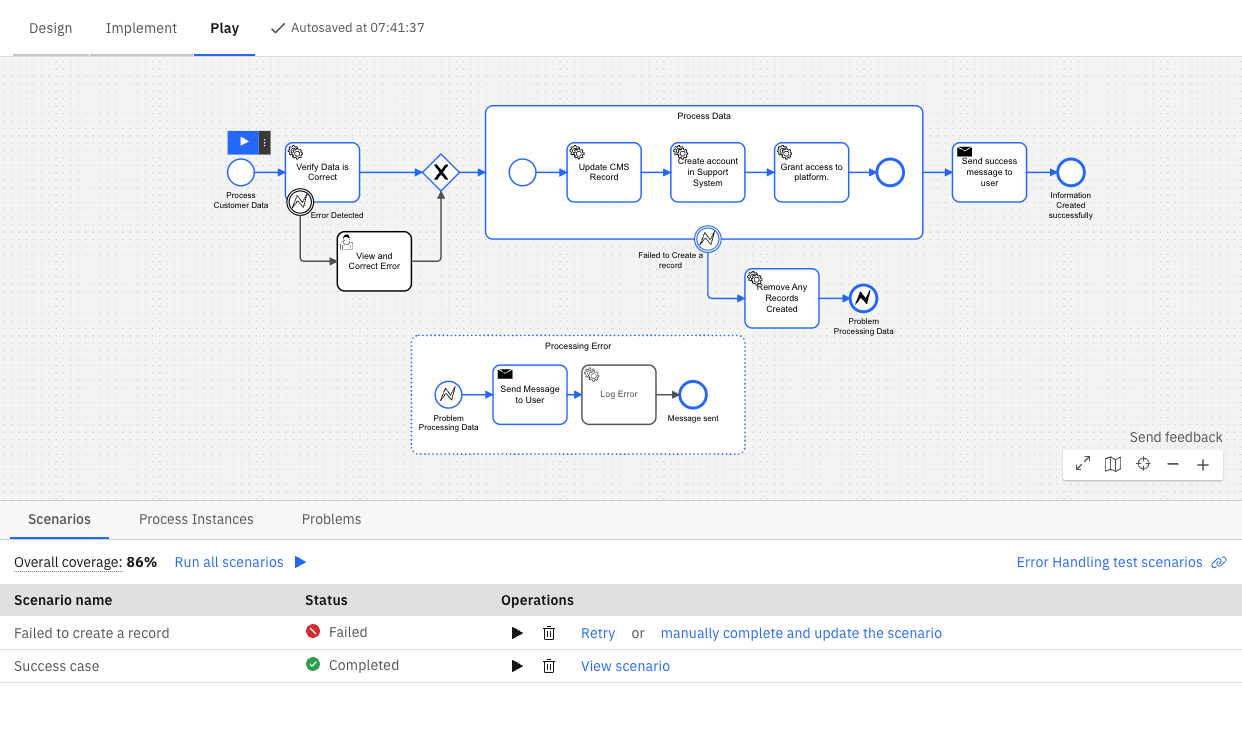

To make changes, switch back to Implement mode. When returning to Play, your process is redeployed. Play only shows process instances from the process’s most recent version, so you may not see your previous instances.
Play saves your inputs when completing user task forms. It auto-fills your last response if you open the same form later in the session. You can click Reset to reset the form to its defaults.
Details
Depending on the BPMN element, there may be a different action:
- User tasks with an embedded form are displayed on click. However, you cannot track assignment logic.
- Call activities can be navigated into and performed.
- Manual tasks, undefined tasks, script tasks, business rule tasks, gateways, outbound Connectors and other BPMN elements that control the process’s path are automatically completed based on their configuration.
- Service tasks, inbound Connectors, message-related tasks, or events are simulated on click or triggered from an external client. However, Play attempts message correlation based on the process context but cannot infer keys from FEEL expressions. Therefore, these keys must be manually entered by publishing a message using secondary actions.
- Many action icons have secondary actions. For example, user tasks can be completed with variables rather than a form, and service tasks can trigger an error event.
Operate vs. Play
Operate is designed to monitor many production process instances and intervene only as necessary, while Play is designed to drive a single process instance through the process and mock external systems.
Both offer monitoring of a single process instance, its variables and path, incidents, and actions to modify or repair a process instance. Operate offers bulk actions and guardrails against breaking production processes, while Play offers a streamlined UX to run through scenarios quickly.
Limitations and availability
Play is being rebuilt and progressively rolled out to more users. This section explains why you might not see the Play tab, and any additional limitations.
For more information about terms, refer to our licensing and terms page.
Camunda 8 SaaS
In Camunda 8 SaaS, Play is available to all Web Modeler users with editor or admin permissions within a project. Enterprise users need an admin to enable Play by opting in to alpha features.
Camunda 8 Self-Managed
To use Play with Docker, ensure OAuth is enabled for your configured components. The docker-compose-core.yaml file in the Camunda platform repository does not provide authentication, and cannot be used with Play.
In Self-Managed, Play is controlled by the PLAY_ENABLED configuration property in Web Modeler. This is true by default for the Docker and Kubernetes distributions.
Prior to the 8.6 release, Play can be accessed by installing the 8.6.0-alpha Helm charts, or running the 8.6.0-alpha Docker Compose configuration.
Features
Decision table rule evaluations are not viewable from Play. However, they can be inferred from the output variable, or can be viewed from Operate.
Use Play with Camunda Self-Managed
After selecting the Play tab in Self-Managed, you are prompted to provide the details of your cluster.
See the table below for the requirement for each field, as well as an example value:
| Name | Description | Example value |
|---|---|---|
| Cluster endpoint | Address where your cluster can be reached | http://zeebe:26500 |
| Operate base url | Address where Operate can be reached | http://operate:8080 |
| Operate audience | Permission name for Operate | operate-api |
| Tasklist base url | Address where Tasklist can be reached | http://tasklist:8080 |
| Tasklist audience | Permission name for Tasklist | tasklist-api |
| Zeebe rest url | Address where the Zeebe REST API can be reached | http://zeebe:8080 |
| Client ID | Name of your registered client | zeebe |
| Client secret | Password for your registered client | zecret |
| OAuth token url | Token issuer server | http://keycloak:18080/auth/realms/camunda-platform/protocol/openid-connect/token |
| OAuth audience | Permission name for Zeebe | zeebe-api |
Limitations
The environment variables CAMUNDA_CUSTOM_CERT_CHAIN_PATH, CAMUNDA_CUSTOM_PRIVATE_KEY_PATH, CAMUNDA_CUSTOM_ROOT_CERT_PATH, and CAMUNDA_CUSTOM_ROOT_CERT_STRING can be set in Docker or Helm chart setups. However, these configurations have not been tested with Play's behavior and, therefore, are not supported when used with Play.
Play Usage and Billing Considerations
The use of Play may result in additional charges depending on your organization's plan and the type of cluster you are using. To avoid extra costs, follow these guidelines based on your plan:
- Enterprise Plans: Use a development cluster to avoid costs. Alternatively, ensure your organization is designated as a development organization. For further assistance, contact your Customer Success Manager.
- Starter/Professional Plans: Use a development cluster to avoid costs. Starter Plan users have one development cluster with free execution for development included in their plan. For Professional Plans, you may need to purchase a development cluster.
- Trial Plans: You can use any cluster.
