Using templates

Applying templates​

If an element template matches a selected diagram element, the template catalog button is shown in the properties panel on the right side of the screen.

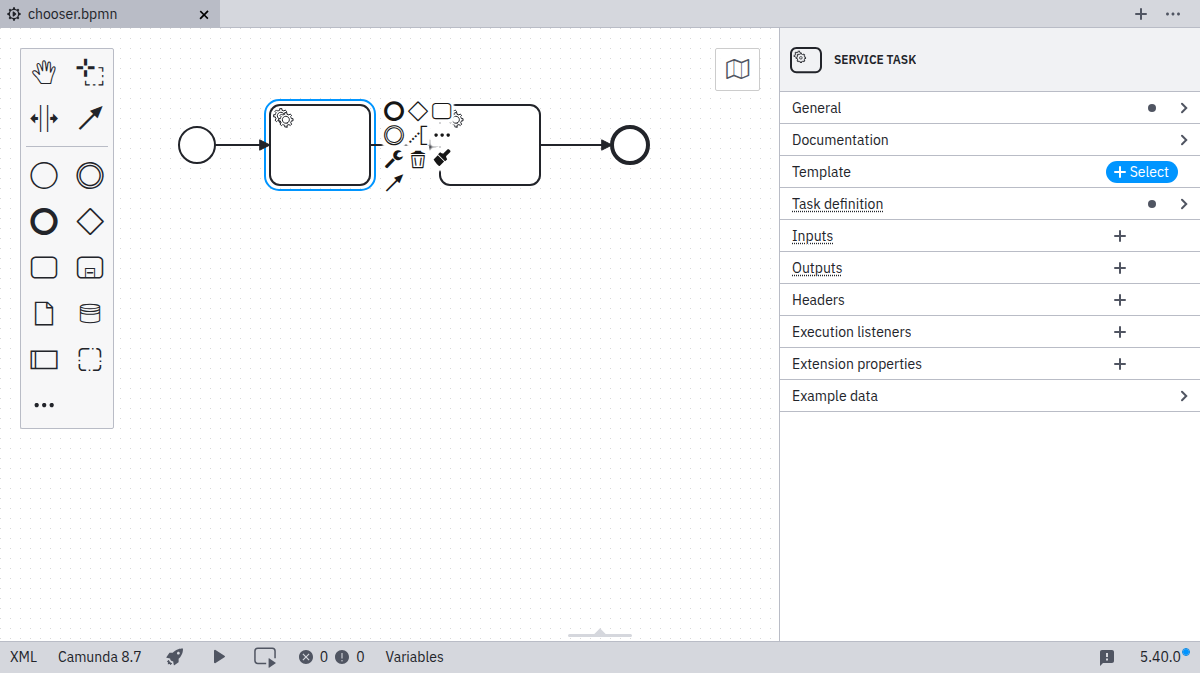

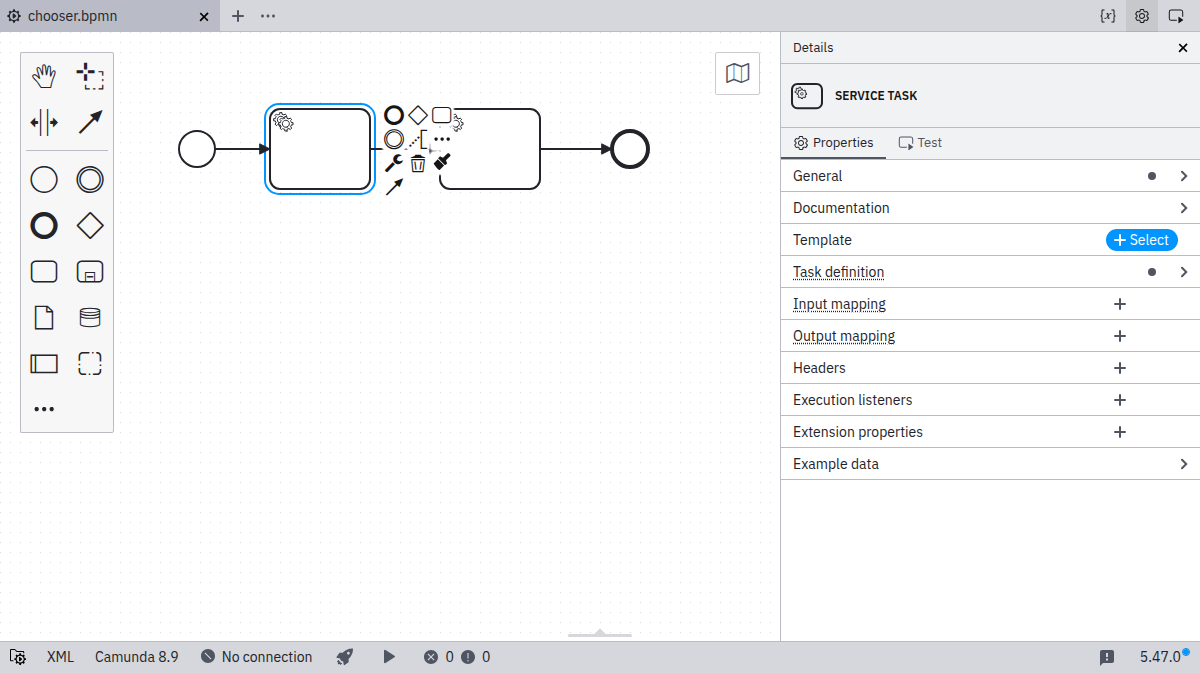

Template Chooser

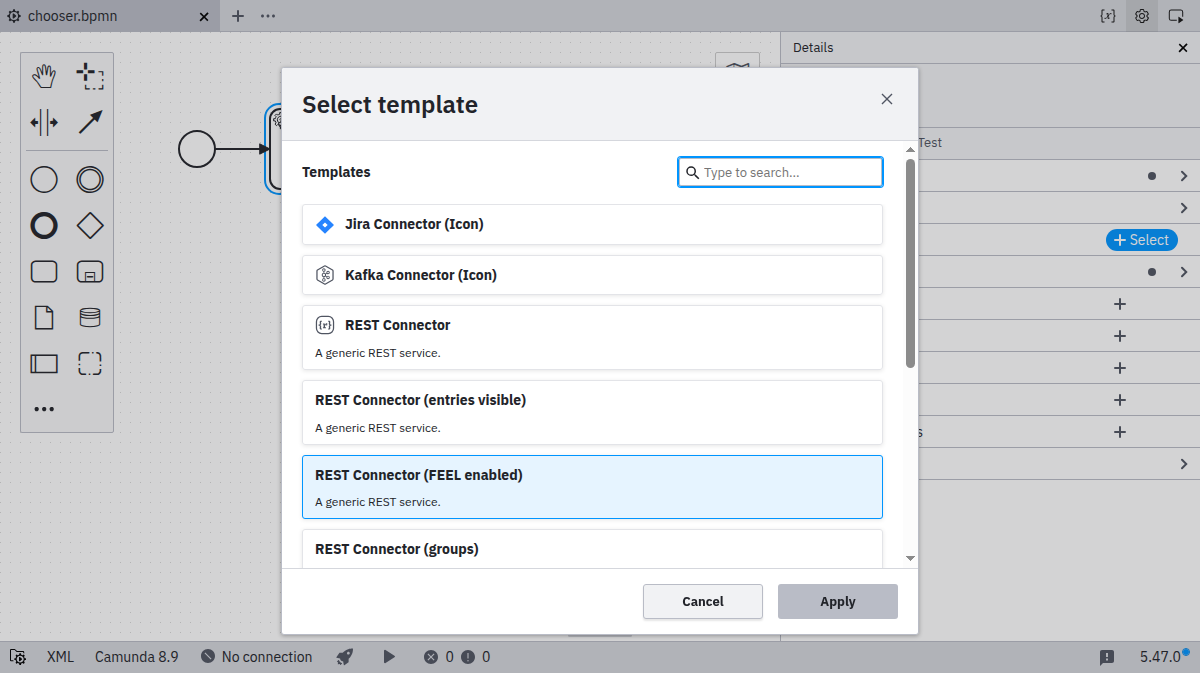

Clicking Select opens a modal menu, allowing you to browse and search available templates for the selected element.

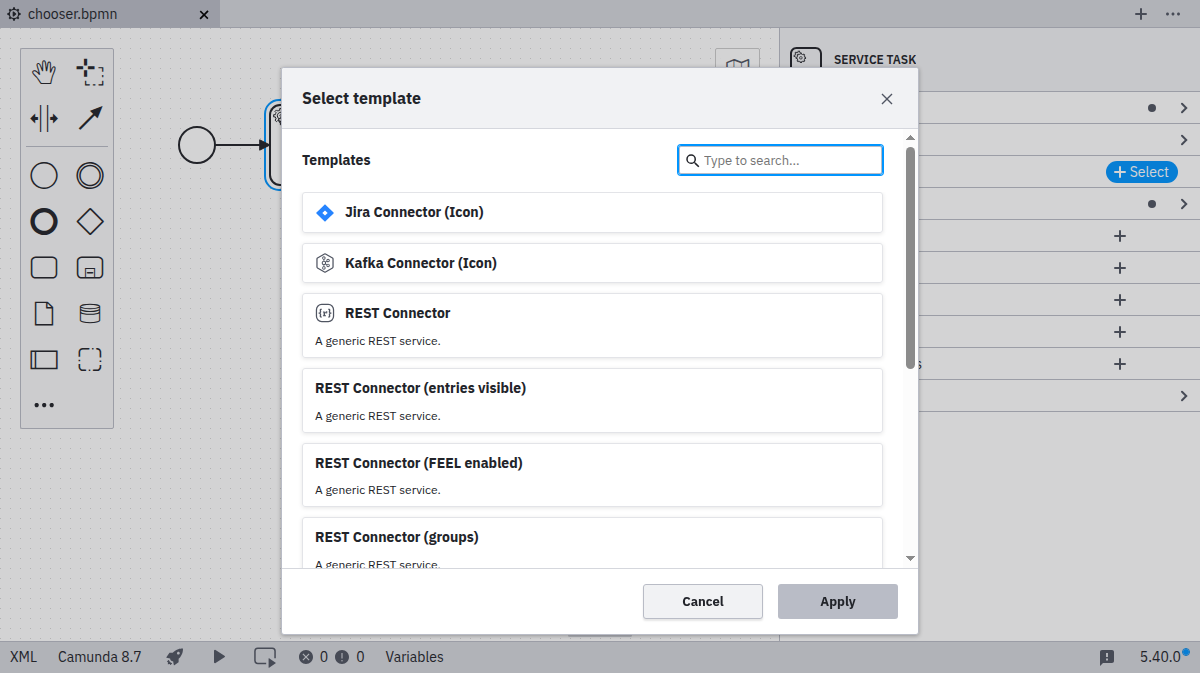

Modal Menu

Applying a template stores it via the modelerTemplate property and the optional modelerTemplateVersion property on the selected element:


<bpmn:serviceTask id="MailTask"
                  zeebe:modelerTemplate="com.mycompany.MailTask"
                  zeebe:modelerTemplateVesion="1"/>

It also sets up custom fields on the diagram element and makes these available for inspection and editing. Properties which were not configured in the element template using custom fields will not be available for editing.

Removing templates​

To remove an applied template from an element, either the Unlink or Remove function can be used:

  • Remove: Remove the element template from the modelerTemplate property and reset all properties of the respective element.
  • Unlink: Remove the element template from the modelerTemplate property but keep the properties which were set.

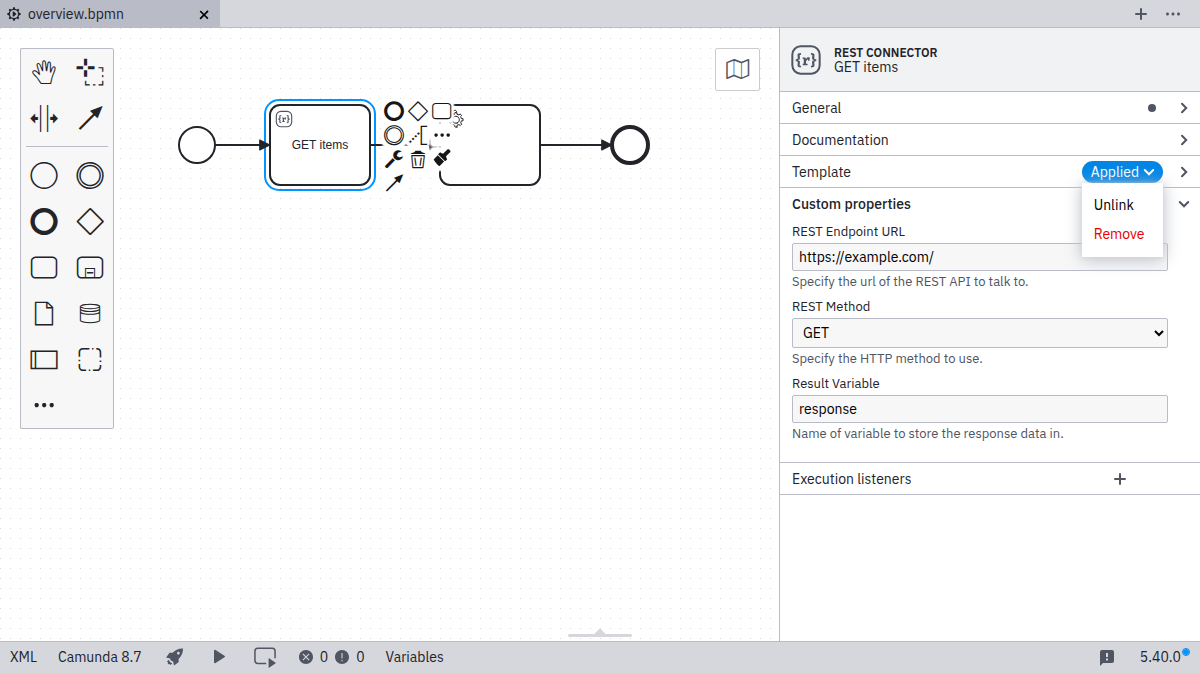

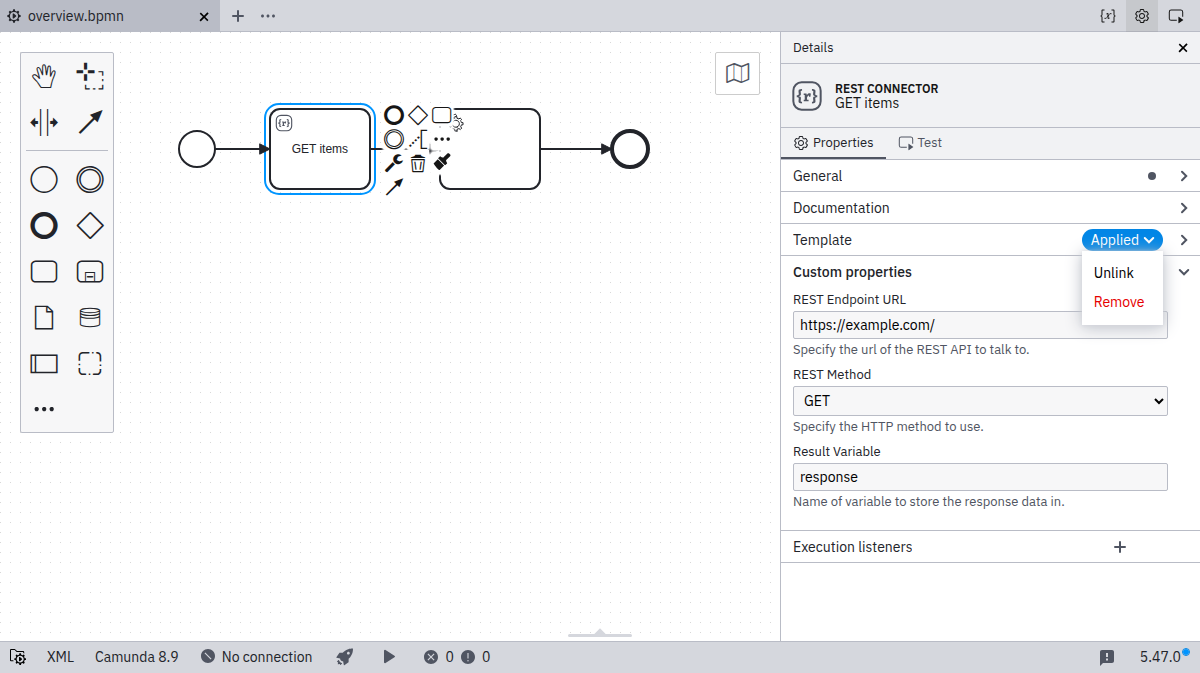

Unlink or Remove

Updating templates​

If a template is applied and a new version of the template is found you can update the template.

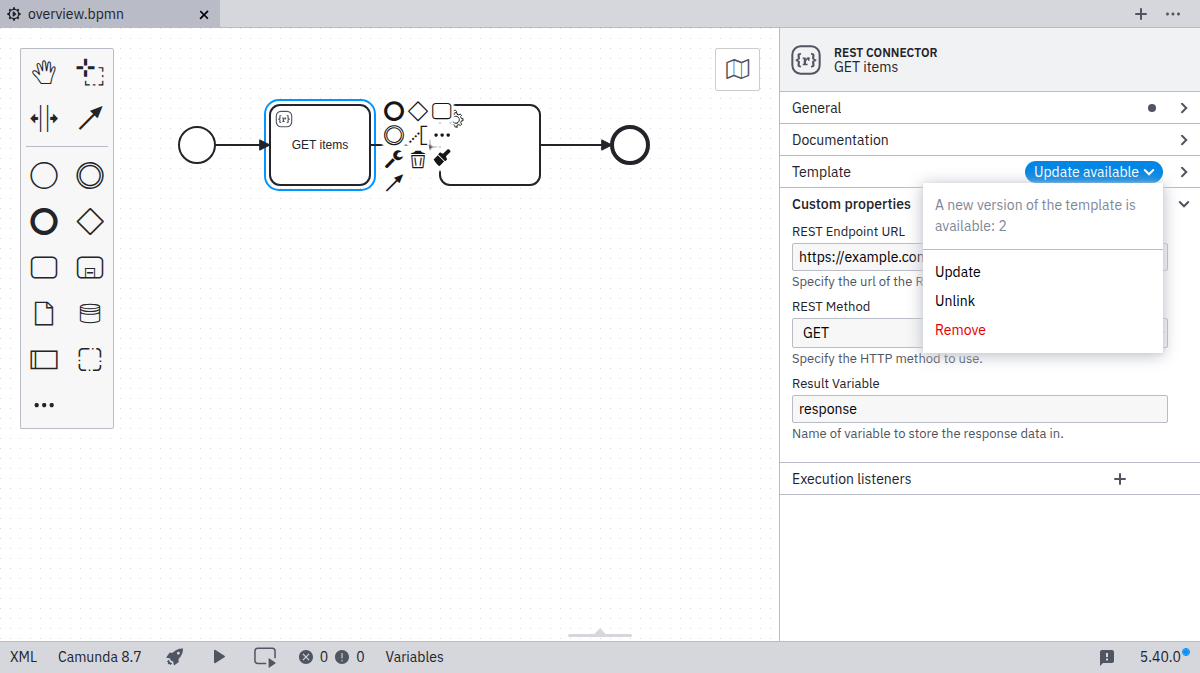

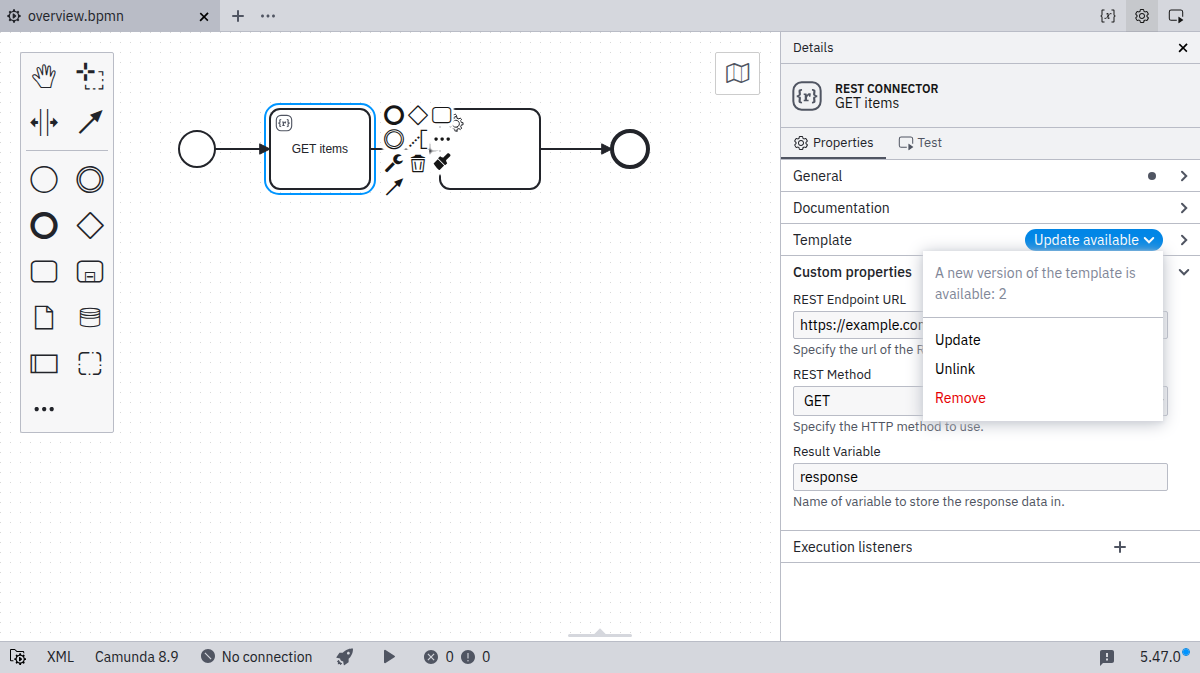

Update Template

Templates are updated according to the following rules:

  • If the property is set in the new template, it will override the existing value — unless the value was originally set by the old template and has been manually changed since.
  • If the property is not defined in the new template, it will unset.
  • Sub-properties of complex properties (for example, zeebe:input, zeebe:output) are handled according to these rules if they can be identified.

Replacing templates​

If a template is deprecated with a new element template and you want to keep the same input values as in the deprecated template, you can:

  1. Unlink: Remove the current template that is deprecated from the modelerTemplate property, but keep the properties which were set.
  2. Select and apply the new element template.

Missing templates​

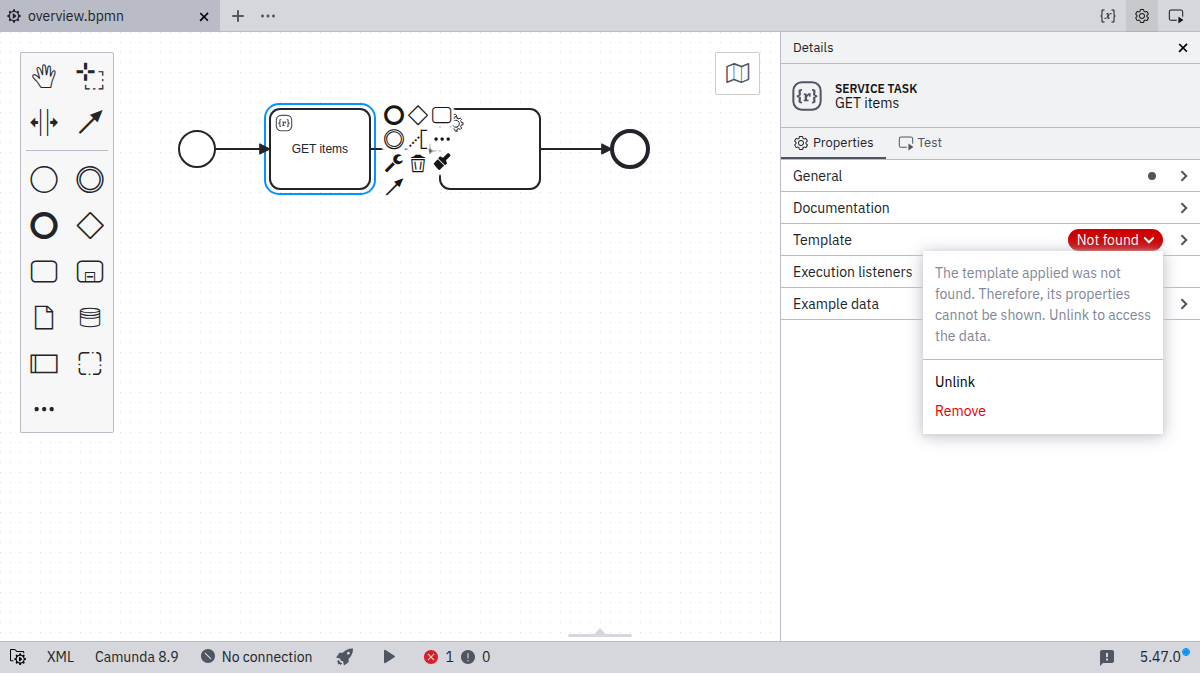

If a template is applied to an element but the respective template cannot be found on the system, the editing of the element is disabled. Unlinking or removing the template for the element or adding the element template config enables the editing again.

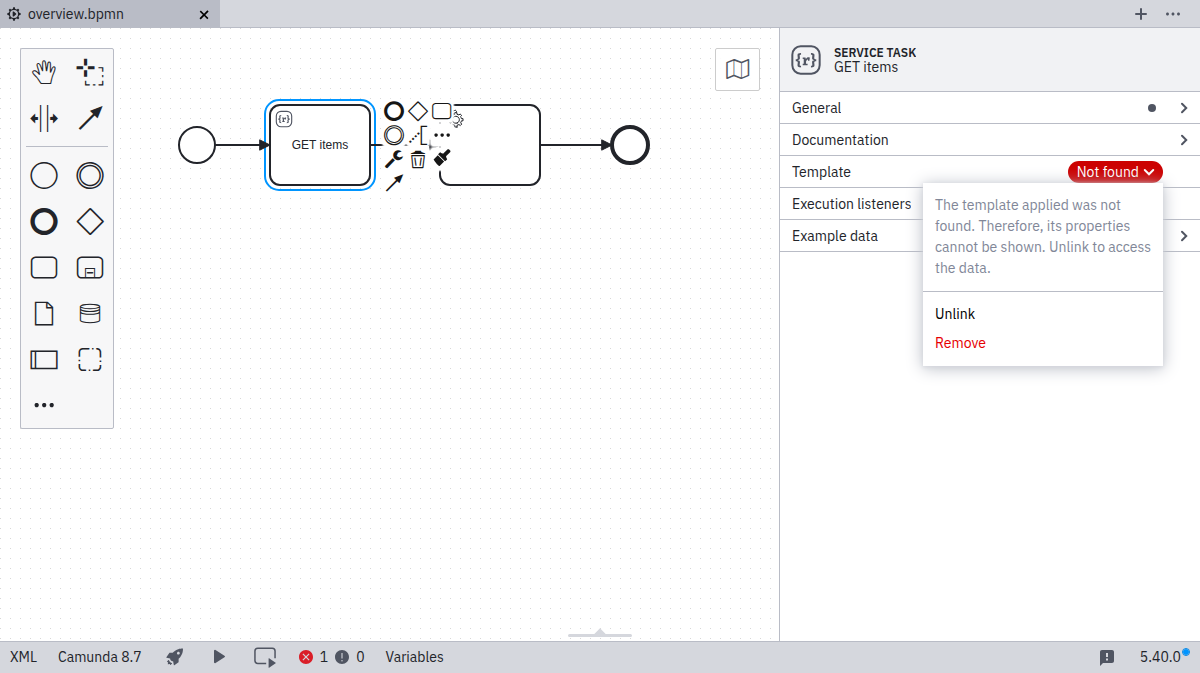

Template not Found
